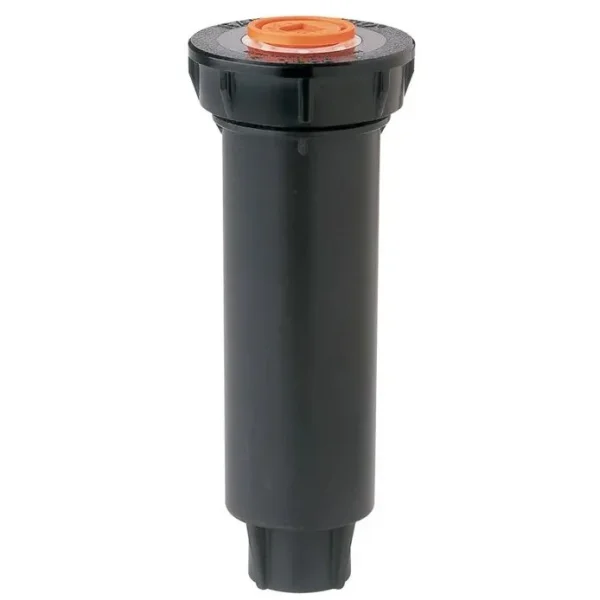

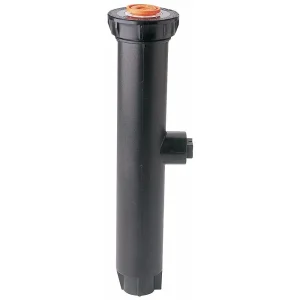

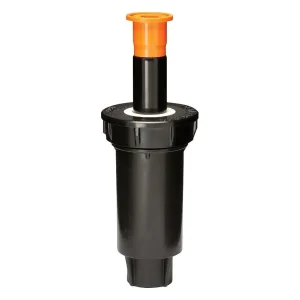

1800® Series, the #1 irrigation spray head in the world.
Features:
- Co-molded wiper seal provides unmatched resistance to grit, pressure and the environment • Constructed of time-proven UV-resistant plastic and corrosion resistant stainless steel parts, ensuring long product life
- Precision controlled flush at pop-down clears debris from unit, assuring positive stem retraction in all soil types • Two-piece ratchet mechanism allows easy nozzle pattern alignment and provides added durability
- Five Year Trade Warranty Operating Range • Spacing: 2.5 to 24 feet (0.8 to 7.3m)**
- Pressure: 15 to 70 psi (1.0 to 4.8 bar) Specifications
- Flow-by: 0 gpm at 8 psi (0.6 bar) or greater; 0.10 gpm (0.02 m3 /h; 0.36 l/m) otherwise Dimensions/Models
- 1 ⁄2″ NPT female threaded inlet

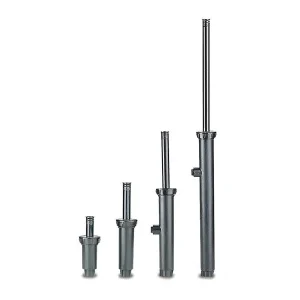

- Models and height: – 1802: 4″ (10.2 cm) body height; 2″ pop-up height (5.1 cm) – 1804: 6″ (15.2 cm) body height; 4″ pop-up height (10.2 cm) – 1806: 93 ⁄8″ (23.8 cm) body height; 6″ pop-up height (15.2 cm) – 1812: 16″ (40.6 cm) body height; 12″ pop-up height (30.5 cm) • Exposed surface diameter: 21 ⁄4″ (5.7 cm)
