Availability: 6 in stock

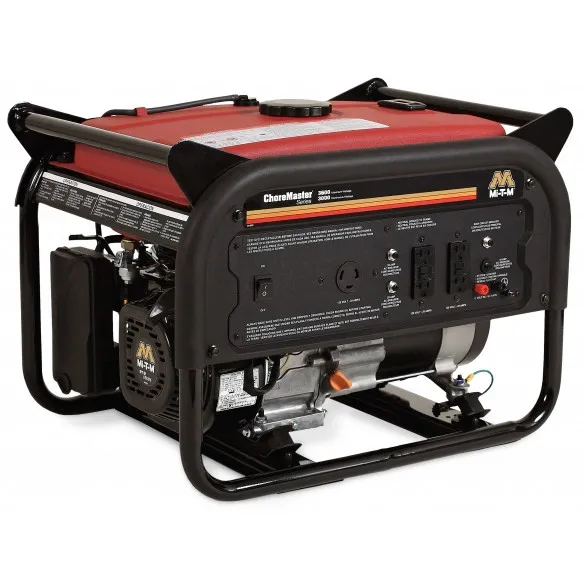

Engine: Mi-T-M OHV engine low-oil shutdown engine • Recoil starting system
Alternator: Brushed 120V alternator • Copper and aluminum windings • Total harmonic distortion (THD) less than 6%
Frame: Low profile, compact design • Wraparound frame with 1-inch steel tubing
Components: Easy-access and protected control panel with magnetic circuit breakers and GFCI-protected receptacles • Large low-tone mufflers • Engine on/off switch • Fuel shut-off valve • DC charging/battery charging
| Max. AC Output | 3600 watts |
| Rated AC Output | 3000 watts |
| Displacement/Engine | 212cc Mi-T-M OHV |
| Frequency/Voltage | 60Hz/120V |
| Cont. Amps (120V/240V) | 25.0 |
| Receptacles | (2) 120V, 20A GFCI duplex, (1) 120V, 30A twist lock |
| Max. Amps (120V/240V) | 30.0 |
| Circuit Breakers | (1) Main circuit breaker, (2) 20A circuit breaker single pole, (1) 10A DC breaker |
| Rated Speed | 3600 RPM |
| Fuel Capacity | 4.0 gallons |
| Run Time (at full load) | 8.5 hours |
| Net Weight | 102 lbs. |
| Shipping Weight | 134 lbs. |
| Length | 24.88 in. |
| Width | 17.64 in. |
| Height | 17.96 in |
