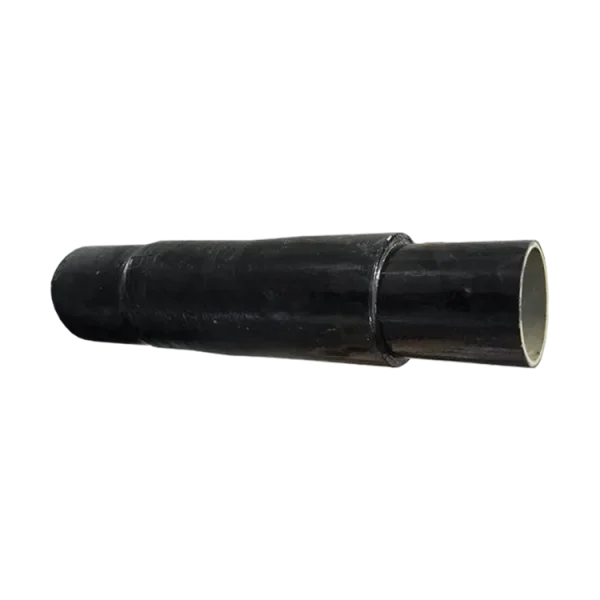

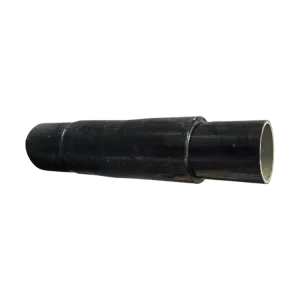

4″ Bullet Resistant Fiberglass O-Ring Expansion Joint – F 24-4017

4″ Bullet Resistant Fiberglass O-Ring Expansion Joint – F 24-4017

HAZ-GUARD Fiberglass Conduit System

ID Series – Inside Diameter

XHW Extra Heavy Wall – For use in hazardous locations and applications which can be subject to physical damage (Class 1, Division 2).

Fiberglass Reinforced Epoxy Conduit

Manufactured from E or E-CR glass and epoxy resin with no fillers.

Unlike PVC which is extremely brittle in cold temperature and malleable in heat, FRE® Conduit maintains its unique characteristics through -40°F to 230°F (-40°C to 110°C).

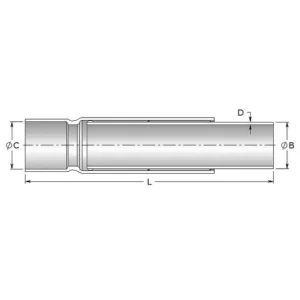

Specs

Size = 4 in (103mm)

ØB = 4.5 in (114.3mm)

ØC = 4.54 in (115.3mm)

D = 0.25 in (6.4mm)

L min = 23 in (584.2mm)

L max = 35 in (889mm)
