Alpha EZ Click Leveling System – T Base 200 Piece Box
Introducing the EZ Click Tile Leveling Systems. The EZ Click’s patent-pending leveling cap perfectly levels adjacent tiles with zero effort.
Features

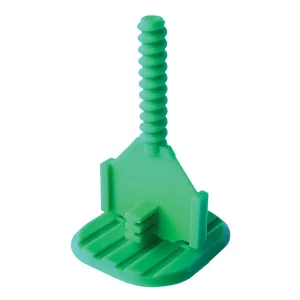

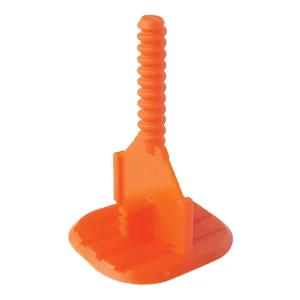

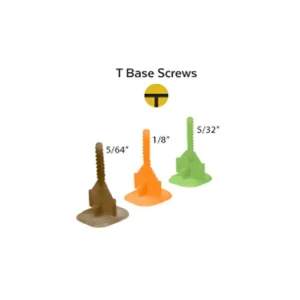

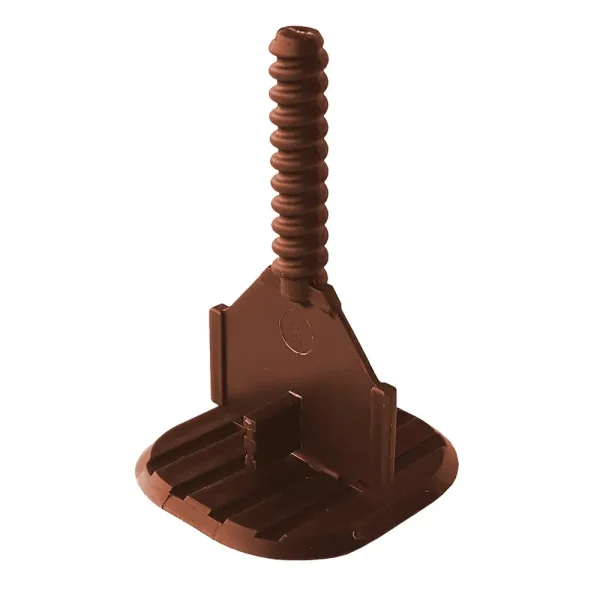

- Available in 3/32″ (brown), 1/8″ (orange), and 5/32″ (green) bases
- Designed for both floor and wall tiling
- Instant screw ejection leveling system
- No tools are required – simply hand tighten until adjacent tiles are level
- Spacer Bases fit below tiles and fasten to the caps
- Proprietary scratch prevention edge
- Compatible with many older-generation systems
- The cap can be used more than 500 times (compared to others, which may only be 8 to 10 times)
- Built-in spacer calibration
- Color-coded base screws for easy size/type identification
- Made in Italy
- Caps sold separately
Technical Data
- Supports tile thickness: 1/8″ to 25/32″ (3mm to 20mm)
- Minimum joint size: 3/32″ (2mm)
- 200 bases per box
How to use
- STEP 1: Place spacer bases under the tile once the thin-set has been applied
- STEP 2: Apply the cap to the base. Lock the cap onto the base by twisting the yellow knob.
- STEP 3: Once the cap is locked to the base, turn the black part of the cap until the adjacent tiles are level; no need to over-tighten
- STEP 4: After the thin-set has cured, break off the caps and bases with a malleIt’s your foot. It’s important to break the caps loose by hitting them toward the top of the spacer base (in line with the grout joint).
- STEP 5: Remove the broken piece of the bases from the caps by unlocking the cap from the base spindle using the yellow knob.
