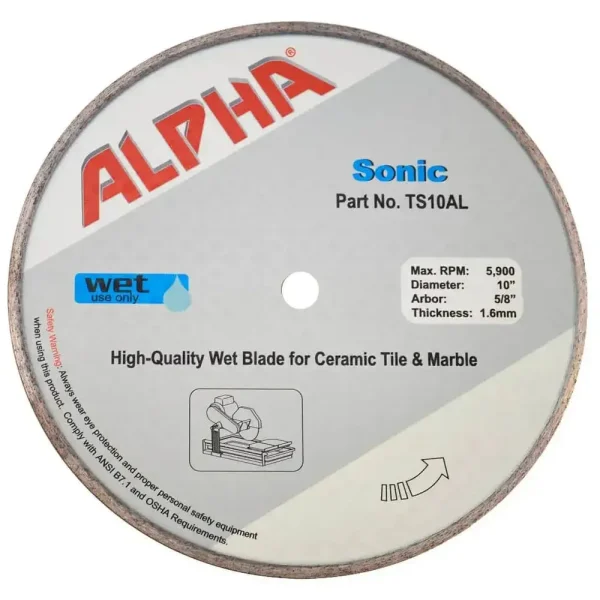

The Alpha Sonic blade is a high-quality general-purpose blade designed to help with clean, easy, and efficient cutting of ceramic tile while minimizing chipping or causing damage to the tile.
| Alpha Sonic Diamond Blade Specifications | ||||||||
| Model | TS04AL | TS05AL | TS06AL | TS07AL | TS08AL | TS10AL | TS12AL | TS14AL |
| Blade Size | 4″ | 4-1/2″ | 6″ | 7″ | 8″ | 10″ | 12″ | 14″ |
| Rim Height | 5 mm | 5 mm | 5 mm | 5 mm | 5 mm | 5 mm | 9 mm | 9 mm |
| Arbor | 20mm, 5/8″ | 7/8″, 20mm | 5/8″ | 5/8″ | 5/8″ | 5/8″ | 1″ | 1″ |
| RPM | 14,500 | 13,200 | 10,100 | 8,400 | 7,400 | 5,900 | 6,200 | 4,365 |
| Kerf | 1.4mm | 1.4mm | 1.4mm | 1.6mm | 1.6mm | 1.6mm | 2.0mm | 2.0mm |
| Material | Performance |
| Ceramic | Excellent |
| Porcelain | Fair |
| Marble | Excellent |
| Granite | Fair |
| Hard Granite | Fair |
| Glass | Not Recommended |
