Anchor Shackle Screw Pin
Contractor's Equipment & Supplies

Anchor Shackle Screw Pin

Original price was: $12.51.Current price is: $3.75.

Availability: 8 in stock

🚚 Free Shipping over $39
✓ Premium Quality
🔒 Secure Payments
↻ Money Back Guarantee
SKU: APEX 5410405
CATEGORY: Contractor's Equipment & Supplies
Description

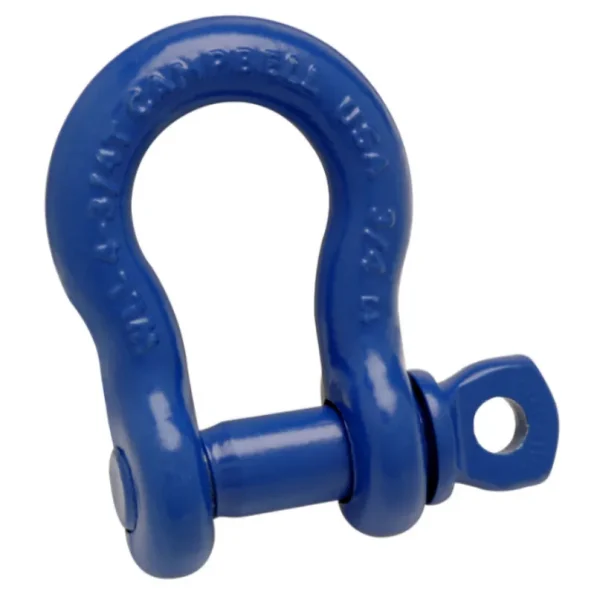

ANCHOR SHACKLE SCREW PIN PAINTED – C-419-S

  • Drop Forged Carbon Steel Body
  • Heat Treated Alloy Steel Pin, Painted
  • Statistically tested for impact resistance, tensile strength, hardness, ductility and fatigue
  • 419 series shackles meet or exceed all manufacturing requirements of the ASME B30.26 rigging hardware, these include the material ductility requirement (Section 26-1.1.2), the design factor requirement (Section 26.1.2), the identification requirement (Section 26-1.5.1) and the effective temperature range (Section 26-1.6.1), the shackles can be proof tested in accordance with Section 26-1.4
SIZE PIN DIA. INNER LENGTH INNER WIDTH OPENING EYE OUTER SIZE LOAD CAPACITY
1/4 in. 3/8 1-1/8 25/32 15/32 11/16 1000 lb.
3/8 in. 7/16 1-7/16 31/32 21/32 15/16 2000 lb. – 1 Ton
1/2 in. 5/8 1-15/16 1-1/4 13/16 1-1/4 2 Ton
5/8 in. 3/4 2-7/16 1-9/16 1-1/16 1-7/16 3.25 Ton
3/4 in. 7/8 2-13/16 1-13/16 1-1/4 1-3/4 4.75 Ton
7/8 in. 1 3-1/8 2-1/16 1-7/16 2 6.5 Ton
1 in. 1-1/8 3-3/4 2-1/2 1-11/16 2-3/8 8.5 Ton

*All sizes in inches
