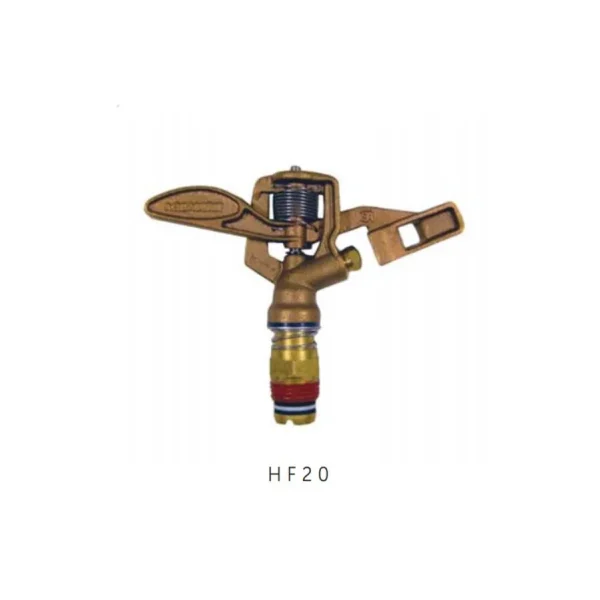

AQUABURST HF20 1/2″ BRASS IMPACT FULL CIRCLE 23^

1/2” Full Circle Brass Impact Sprinkler

FEATURES:
PART NO. NOZZLE/CASE/PALLET LIST
HF20-764 7/64”/100/2700
HF20-18 1/8”/100/2700

• Full Circle Impact Sprinkler
• 23° Trajectory
• 1/2” MPT Bearing with XC-33 Thread Sealant
• Single Nozzle
• 3/8-24 UNF Nozzle Threads
• Factory Installed 7/64” or 1/8” Nozzle Included
• Uses DN-1 Nozzle

Cast Brass Drive Arm with I-BeamConstruction and Torque-Driven™
Spoon Technology with Improved
Balance, Rotation Speed, and Durability
• Advanced Arm Balance with Consistent
Rotation Speed and Increased Durability
• Stainless Steel Fulcrum Pin, Arm Spring
and Bearing Spring
• Cast Brass Body with Large Impact Bridges
and Cored Water Passage
• Coined Body and Arm Ensures Proper Arm
Position and Smooth Operation
• Suitable for Solid Set and Portable Applications
• Made with Foreign and Domestic Parts
