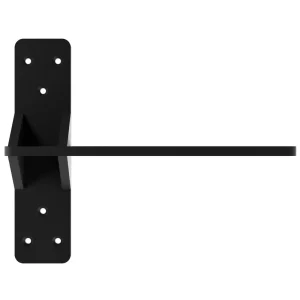

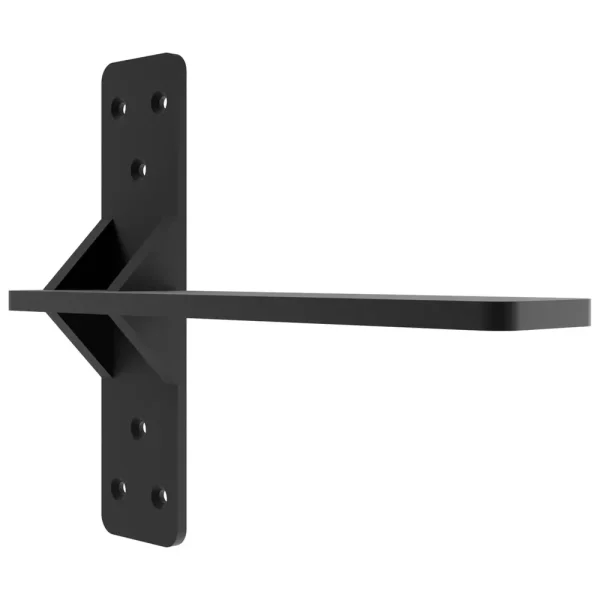

Balin Designs Post Bracket
This heavy-duty bracket is ideal for kitchen islands, breakfast bars, extended countertops, and more.
Features
- Made with Premium Hot Rolled Steel with powder coated finish
- Provides strong, long-lasting support
- Each set of brackets is designed for shelves up to 48 inches wide (It’s recommended to install an extra bracket for every 24 inches of shelf)
- It is recommended to have a shelf depth overhead of 2 inches but no more than 4 inches
- Maximum Weight Load of 300 pounds per pair
| Post Bracket Specifications |
| Size |
Small |
Medium |
Large |
| Depth |
12″ |
14″ |
16″ |
| Height |
10″ |
10″ |
10″ |
| Width A |
2.5″ |
2.5″ |
2.5″ |
| Width B |
2.5″ |
2.5″ |
2.5″ |
| Thickness A |
10mm |
10mm |
10mm |
| Thickness B |
6mm |
6mm |
6mm |
| Weight |
5.51 lbs |
6.08 lbs |
6.61 lbs |
