Availability: 7 in stock

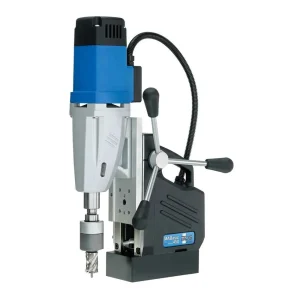

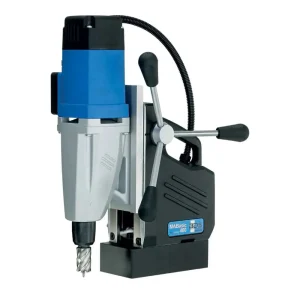

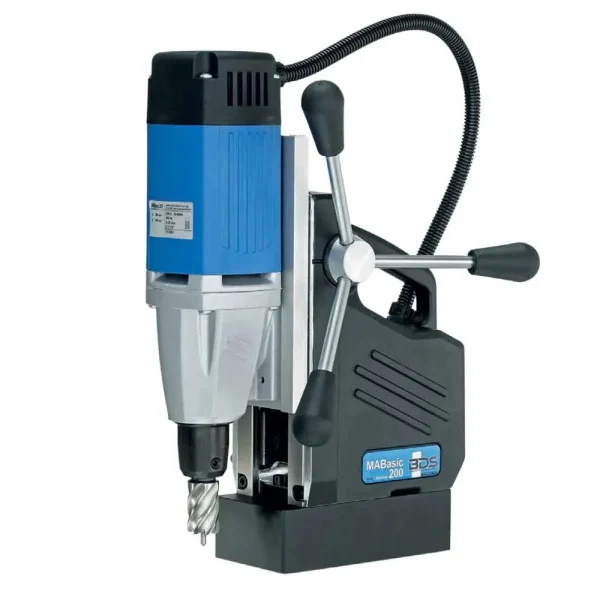

CS Unitec’s MABasic Line of portable magnetic drills are lightweight, powerful machines designed for drilling into structural steel and other metals. Compact and portable, this reliable tool can be moved around easily and is strong enough to take on most metal drilling applications.
| MABasic Series Magnetic Drill Specifications | ||||
| Model | MABasic 200 | MABasic 400 | MABasic 450 | |
| Motor Power | 8.2 Amp / 110 V | 9.5 Amp / 110 V | 10.5 Amp / 110 V | |
| Hole Capacity | 1-3/8″ Diameter | 1-5/8″ Diameter | 1-3/4″ Diameter | |
| Speed (RPM) | 450 RPM | 430/760 RPM (2 gears) | 250/450 RPM (2 gears) | |
| Magnetic Base Size | 6-5/8″ L x 3-1/3″ W | 6-5/8″ L x 3-1/3″ W | 6-5/8″ L x 3-1/3″ W | |
| Magnetic Force | 3080 lbs. | 3080 lbs. | 3080 lbs. | |
| Arbor Bore | 3/4″ Weldon Shank | 3/4″ Weldon Shank | 3/4″ Weldon Shank | |
| Dimensions | 12-1/4″ H x 9″ L x 6-1/2″ W | 14″ H x 9-1/2″ L x 6-1/2″ W | 17″ H x 9-1/2″ L x 6-1/2″ W | |
| Weight | 27 lbs | 27 lbs | 29 lbs | |
