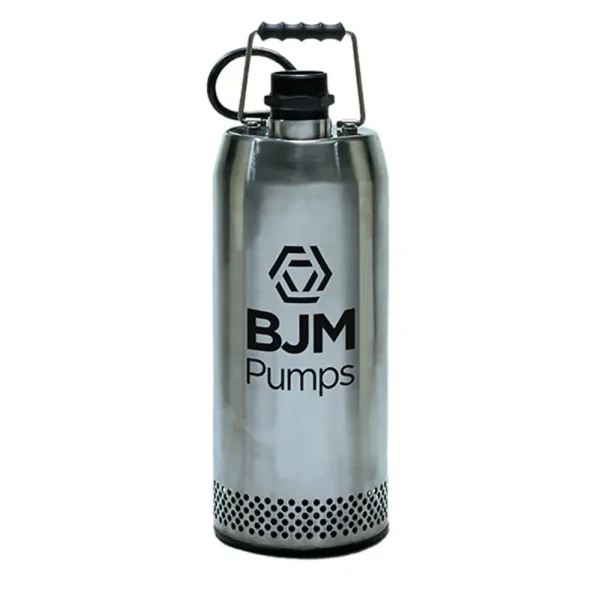

| BJM R1500 Pump Specifications | |
| MAX. FLOW: GPM | 116 gpm |
| MAX. HEAD | 71 ft |
| PUMP TYPE | Elec. Submersible, Top Discharge, Dewatering |
| STRAINER OPENING | 1/4″ |
| DISCHARGE CONNECTION | 2″ NPT-M |
| SHIPPING WEIGHT:lbs | 80 lbs |
| MECHANICAL SEAL UPPER | Crb / Cer |
| MECHANICAL SEAL LOWER | Sic / Sic |
| MOTOR CASING | 304 SS |
| PUMP VOLUTE | Cast Iron |
| IMPELLER-MULTI VANE | Cast Iron |
| STRAINER | 304 SS |
| LIPSEAL & O-RINGS | Buna-N |
| ROTOR SHAFT | 304 SS |
| EXTERNAL HARDWARE | 304 SS |
| QTY. OIL IN SEAL CHAMBER | 2.7 U.S. fl. oz. |
| Motor Data | |
| MOTOR RATING | 2 HP |
| MOTOR RPM | 3450 Rpm |
| MOTOR INSULATION CLASS | F |
| MOTOR SERVICE FACTOR | 1.1 |
| VOLTAGE | 230V, 1ph-60Hz |
| CURRENT Full Load Amps. | 14 Amps |
| MOTOR PROTECTION | Thermal & Amp O.L. |
| POWER CORD GAGE & LENGTH | 14/3; 50 ft |
| MAXIMUM LIQUID TEMPERATURE | 104 F |
