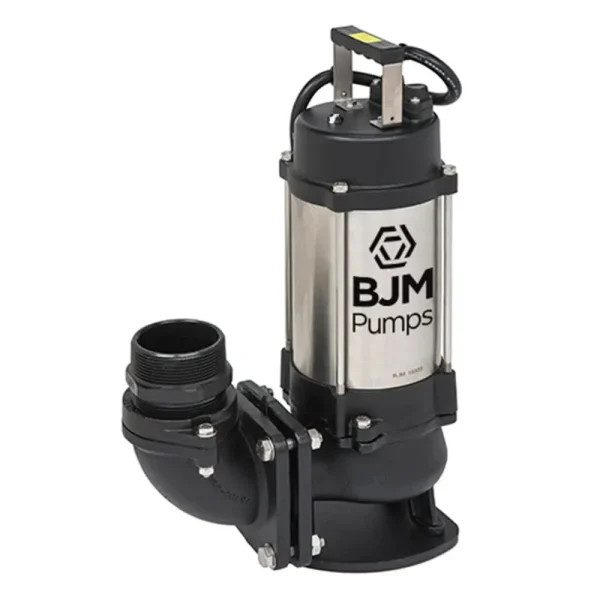

BJM SV750-115 3″ Submersible Pump

Original price was: $1,046.74.Current price is: $100.95.

Availability: 9 in stock

🚚 Free Shipping over $39
✓ Premium Quality
🔒 Secure Payments
↻ Money Back Guarantee
SKU: 201532
CATEGORY: Pumps & Water Systems
Description

BJM SV750-115 Vortex Trash 3″ Submersible Pump

The SV-Series pumps have Vortex impellers, the best non-clog impellers ever invented for handling mud, raw sewage, viscous liquids, rags, wood chips, and other solids. They pass solids of up to 90% of the pump outlet diameter.

Features

  • Recessed vortex impeller pumps for passing large solids found in sewage and industrial waste
  • SV pumps are designed to pass mud, raw sewage, leaves, rags, wood chips, and other solids without clogging

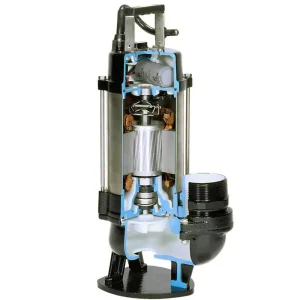

  • Constructed with a cast iron volute and fully recessed impeller for pumping solids without clogging
  • Rugged construction (no breakable plastic component) and lightweight for portability
  • Lip Seal and double mechanical seals
  • Lower seal is silicon carbide/silicon carbide, and upper seal is carbon/ceramic
  • Built in high-temperature automatic overload switch and class F motor insulation protects against motor failure due to overheating
  • 1 HP, 115 Volts, single phase, 14 Full Load Amp
  • Max Solids 2″
SV750-115 Specifications
MAX. FLOW: GPM 100 gpm
MAX. HEAD: ft 31 ft
PUMP TYPE Elect.Submersible, Non-Clog Vortex
DISCHARGE CONNECTION 3″ NPT-M
SHIPPING WEIGHT: lbs. 80 lbs.
MECHANICAL SEAL UPPER Crb / Cer
MECHANICAL SEAL LOWER Sic / Sic
MOTOR CASING 304 SS
PUMP VOLUTE Cast Iron
IMPELLER-MULTI VANE Cast Iron
LIPSEAL and O-RINGS Buna-N
ROTOR SHAFT 304 SS
EXTERNAL HARDWARE 304 SS
QTY. OIL IN SEAL CHAMBER 9.3 U.S. fl. oz.
Motor Data
MOTOR RATING: HP 1
MOTOR RPM 3450 Rpm
MOTOR INSULATION CLASS F
MOTOR SERVICE FACTOR 1.1
VOLTAGE 115V, 1ph-60Hz
CURRENT Full Load Amps. 14 Amps
MOTOR PROTECTION Thermal breaker and Amp. O.L.
POWER CORD GAGE and LENGTH 14/3, 33 ft
MAXIMUM LIQUID TEMPERATURE 104 F
