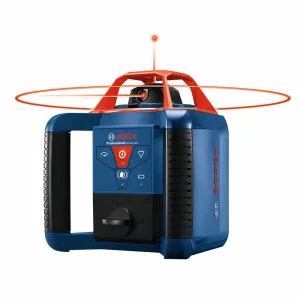

BOSCH GRL900-20HVK Self-Leveling Rotary Laser OVERVIEW
The Bosch REVOLVE900 Self-Leveling Horizontal/Vertical Rotary Laser Kit delivers a comprehensive solution for precise outdoor and indoor leveling. It features a horizontal/vertical self-leveling laser, suitable for leveling, aligning and squaring applications. The rotary laser provides users with variable speed selection and manual scan angles for maximum visibility at different lighting conditions. It delivers accuracy of up to ±1/8 In. at 100 Feet, and a range of up to 1,000 Feet. with LR10 laser receiver. The electronic self-leveling system has a disturbance monitor, which indicates to the user if tool position changes, ensuring consistent leveling accuracy on the jobsite. The laser has a metal cage and an IP54 rating. Easy to use, the kit includes a remote control that allows for one-person operation to handle leveling and grading tasks on the jobsite. This all-in-one solution includes an LR10 laser receiver, remote control, aluminum tripod, sturdy grade rod, wall mount, two D batteries, three AA batteries, laser glasses, target card and hard carrying case.
|

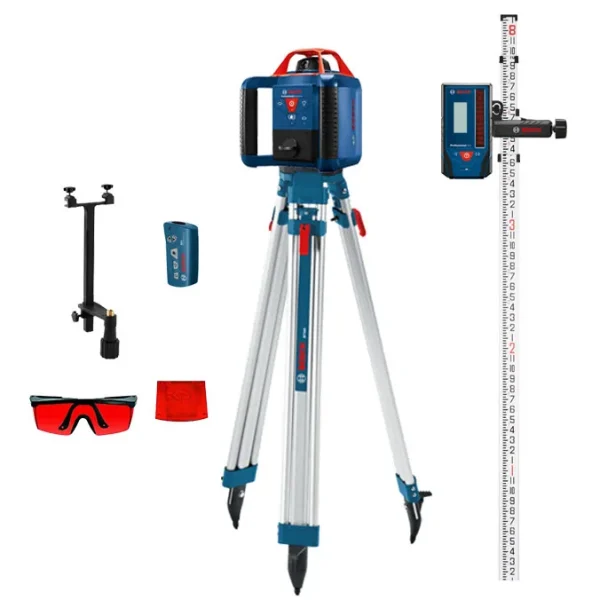

BOSCH GLR900-20HVK Laser Kit INCLUDES
- GRL900-20HV REVOLVE900 Self-Leveling Horizontal/Vertical Rotary Laser
- 2 each D Cell Alkaline Batteries for Laser
- LR10 Laser Receiver with Bracket
- 4 each AA Batteries for Receiver
- BT160 Contractor Grade Aluminum Tripod
- GR8 8 Foot Grade Rod with Measurements in INCHES
- RC1 Remote Control
- WM24 Wall Mount
- Red Laser Glasses
- Red Target Card
- Small Protective Carrying Case
|
|
BOSCH GRL900-20HVK Laser Package BENEFITS
- Vertical-beam functionality – provides a vertical beam and 90° point for layout, squaring and plumb applications
- Electronic self-leveling – allows for easy setup and use on the job
- Disturbance monitor – indicates if tool position changes, ensuring consistent leveling accuracy
- Comprehensive rotary laser kit – features a horizontal/vertical rotary laser with working range of up to 1,000 Ft. and includes an LR10 laser receiver, a remote control, a tripod, a grade rod, wall mount, two D batteries, three AA batteries, laser glasses, target card and a carrying case
- Reliable accuracy – delivers ±1/8 In. accuracy at 100 Feet for confidence in the job setup
- Long-range capability – provides up to 1,000 Foot working range
- Variable-speed and scan-angle selection – allows for maximum visibility at different lighting conditions
- Robust design – features two large easy-to-grip carrying handles for convenience and additional drop protection
|
BOSCH GRL900-20HVK Laser Level TECHNICAL SPECIFICATIONS
|
| Orientation |
Horizontal / Vertical |
| 90° Plumb Beam |
Yes |
| Accuracy |
± 1/8 inch @ 100 ft. Horizontal Mode
|
| Leveling Type |
Electronic Self-Leveling |
| Height |
7.5 inches
|
| Environment |
IP54
|
| Laser Class |
3R |
| Laser Diode |
635 nm, <5mW
|
| Power Supply |
4 x (D-Cell)
|
Approximate Operating Time
|
50 hours
|
| Length |
7.0 inches |
| Self-Leveling Type/Range |
Self-Leveling, Up to ±8%(±5°) |
| Material |
Plastic Composite |
| Mounting Thread |
5/8-11 |
| Operating Temperature |
14° F ~ 122° F
|
| Range |
Up to 1,000 feet (diameter)
|
Rotation Speeds
|
150 / 300 / 600 rpm |
Scan Angles
|
0° / 10° / 25° / 50° |
| Slope |
N/A |
| Weight |
3.9 lbs |
| Width |
6.7 inches
|
| Warranty |
1 Year on laser, Extended to 2 Years on laser with online product registration. |

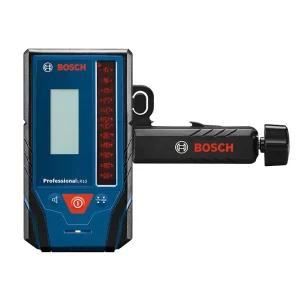

BOSCH LR10 Rotary Laser Receiver INCLUDED IN GLR900-20HK PACKAGE
|
1,000 Feet Rotary Laser Receiver
The Bosch LR10 Rotary Laser Receiver is designed to increase the GRL900-20HVK rotary laser detection up to 1,000 Feet., with a dual-sided backlit LCD display for use in darker areas or outdoors on both sides of the receiver. The display illuminated large, easy-to-see indicators, including up/down arrows, center line, accuracy level, battery levels and audio signal. It also has LED indicators, to provide easy visual readout and simple operation. The oversized laser detection area helps find the laser beam faster, making it easier to start setting level. The receiver provides convenience features such as built-in magnets for secure attachment to metal surfaces, an adjustable audio indicator and a intuitive three-button keypad for simple operation.
BOSCH LR10 Rotary Laser Receiver INCLUDES
- LR10 1,000 Foot Rotary Laser Receiver
- Mounting Bracket
- (2) 9 Volt Battery

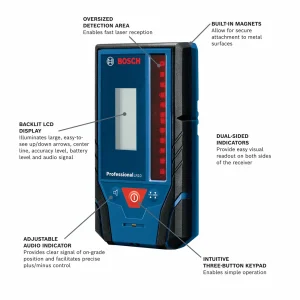

BOSCH LR10 Rotary Laser Receiver BENEFITS
- Receiver to extend working range – increases rotary detection up to 1,000 Feet. with easy-to-see indicators and adjustable audio
- Backlit LCD display – illuminates large, easy-to-see up/down arrows, center line, accuracy level, battery level and audio signal
- Dual-sided indicators – provide easy visual readout on both sides of the receiver
- Oversized detection area – enables fast laser reception
- Built-in magnets – allow for secure attachment to metal surfaces
- Adjustable audio indicator – provides clear signal of on-grade position and facilitates precise plus/minus control
- Intuitive three-button keypad – enables simple operation
- Ergonomic soft grip – provides secure handling and comfort.
|
|
|
