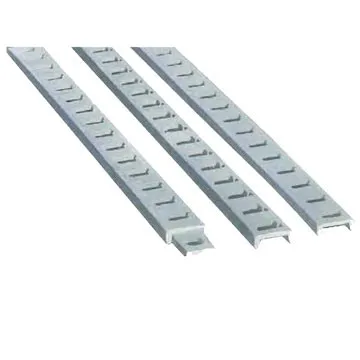

Cable Racks
Supports cable runs in manholes and vaults. Made of 1-1⁄2″ x 9⁄16″ x 3⁄16″ (38 x 14 x 5 mm) hot rolled steel channel, hot dip galvanized. T-slots for attaching hooks are spaced at 1-1⁄2″ (38 mm) intervals. The 8, 14 and 18 hole racks have 19⁄32″ x 3⁄4″ (15 x 19 mm) mounting slots at each end that interlock so two or more racks may be combined into one unit. Longer racks are mounted through the T-slots. Use 1⁄2″ or M12 mounting hardware.
| Part Number | Support Holes | Length | Bolt Hole Spacing | ||
| (in) | (mm) | (in) | (mm) | ||
| 08380000 | 8 | 15 | 381 | 13-1⁄2 | 343 |
| 08380100 | 14 | 24 | 610 | 22-1⁄2 | 572 |
| 08380200 | 18 | 30 | 762 | 28-1⁄2 | 724 |
| 08380300 | 37 | 55-1⁄4 | 1,403 | – | – |
| 08380400 | 43 | 64-1⁄4 | 1,631 | – | – |
| 08383500 | 47 | 70-1⁄4 | 1,784 | – | – |
| 08380500 | 54 | 81 | 2,057 | – | – |
14 Hole Cable Rack with Tab
AED 10A08
DIGI 10A08
INWESCO 10A08
