Availability: 8 in stock

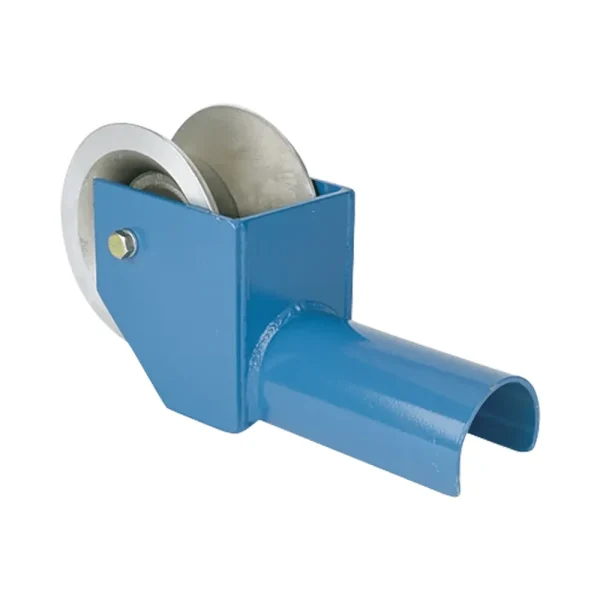

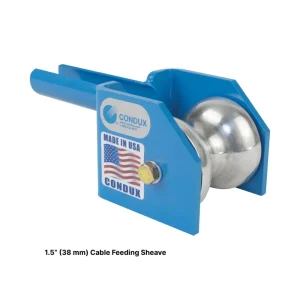

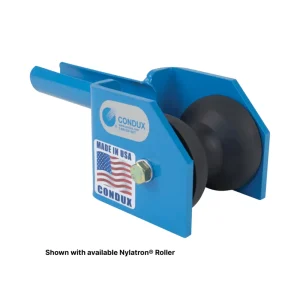

Condux Cable Feeding Sheaves
Designed to plug into the manhole wall conduit, these sheaves guide cables into the conduit securely, ensuring smooth installation regardless of the pulling angle.
*Fits sch 80 pipe.
| Size | Tube Slot Width (A) | Tube Length (B) | I.D. Tube Width | O.D. Tube Width | Load Capacity | |
| Part Number | (IN) | (IN) | (IN) | (IN) | (IN) | (LBS) |
| 08617312 | 1.25 | 0.88 | 5 | 1.06 | 1.19 | 1500 |
| 08617215 | 1.50 | 1.04 | 5 | 1.25 | 1.44 | 1500 |
| 08617220 | 2.00 | 1.38 | 6 | 1.75 | 1.95 | 2600 |
| 08617225 | 2.50 | 1.44 | 8 | 2.16 | 2.40 | 2600 |
| 08617230 | 3.00 | 2.25 | 12 | 2.62 | 2.95 | 4800 |
| 08617235 | 3.50 | 2.75 | 12 | 3.00 | 3.38 | 4800 |
| 08617200 | 4.00 | 3.00 | 12 | 3.50 | 3.95 | 6500 |
| 08617250 | 5.00 | 3.75 | 14 | 4.50 | 4.90 | 6500 |
| 08617260 | 6.00 | 4.50 | 14 | 5.37 | 5.90 | 6500 |
| 08617280 | 8.00 | 6.00 | 14 | 7.18 | 7.81 | 6500 |
