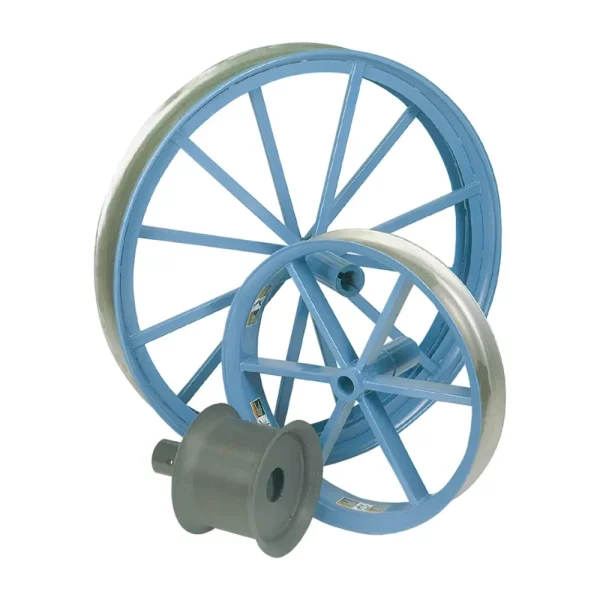

Condux Fiber Optic Pulling Capstans
These bayonet-style capstans are designed to fit the Condux Fiber Optic Cable Puller and come in three sizes: 30″ (762 mm), 42″ (1,067 mm), and 50″ (1,270 mm) diameters, all compatible with a 2 7/16” diameter bayonet-style shaft. Ideal for pulling innerduct, power, telephone, or coaxial cables, these capstans offer versatile options for your fiber optic cable pulling needs.
| Part Number | Diameter (IN) | Flat Width (IN) | Max. Cable O.D. |
| 08675230 | 30 | 4 | .75 |
| 08675430 | 30 | 8 | 1.00 |
| 08675436 | 42 | 8 | 1.05 |
| 08675220 | 50 | 8 | 1.25 |
| 12 in Diameter Capstan* | 30 in Diameter Capstan | 30 in Diameter Capstan | 42 in Diameter Capstan | 50 in Diameter Capstan | ||||||
| Part Number | 08675213* | 08675230 | 08675430 | 08675436 | 08675220 | |||||
| Flat Surface | in | mm | in | mm | in | mm | in | mm | in | mm |
| Width | 9 | 229 | 4 | 102 | 8 | 203 | 8 | 203 | 8 | 203 |
| Pulling Force | lbs | kN | lbs | kN | lbs | kN | lbs |
kN | lbs | kN |
| Maximum/Continuous | 2,000 | 8.9 | 1,000 | 4.4 | 600 | 2.7 | 600 | 2.7 | 600 | 2.7 |
| Pulling Speed | ft/min | m/min | ft/min | m/min | ft/min | m/min | ft/min | m/min | ft/min | m/min |
| At Maximum Force | 93.9 | 28.6 | 240 | 73.2 | 240 | 73.2 | 328.4 | 100 | 391.4 | 119.3 |
| Cable Diameter | NOT FOR FIBER OPTIC CABLE | in | mm | in |
mm | in |
mm | in | mm | |
| Maximum | — | — | 0.75 | 19 | 0.75 | 19 | 1.05 | 26.7 | 1.25 | 32.5 |
| Power Requirements | ||||||||||
| Pressure | 2,000 to 2,500 psi (137 to 172 bar) | |||||||||
| Flow | 6 to 10 gpm (22.7 to 37.9 lpm) | |||||||||
| Peak Power | 8HP (5.97 kw) | |||||||||
*08675213 12″ Capstan is not a normal stock item – Call for
