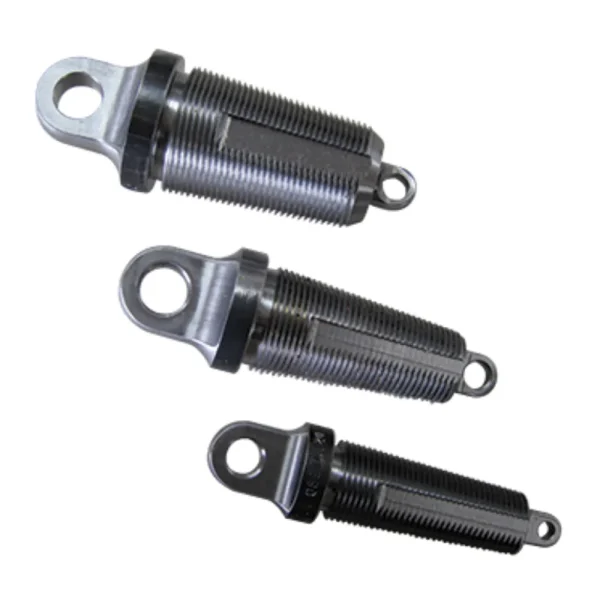

Condux Fixed Head Innerduct Pulling Eye Tang
Designed with tapered buttress threads for secure threading into the innerduct, providing maximum pulling strength. These pulling eyes attach directly to a Condux swivel. When correctly sized and installed, they remain firmly in place, withstanding pulling tensions far exceeding the maximum recommended limits by the innerduct manufacturers before any pullout occurs.
NOTE: To determine correct pulling eye size, obtain the actual innerduct inside diamater (ID). The ID measurement must be greater than dimension A and smaller than dimension B (see diagram below).
| Part # |
Nominal Size (in) |
Innerduct ID Range (in) (A-B) |
Max OD (C) |
Hole Dia. (in) (D) |
Tang Thickness (E) |
Tang Hole Diameter (F) |
Tang Hole Location (G) |
| 08914110 | 3/4 | .71-.87 | 1.25 | .25 | .38 | .50 | .50 |
| 08914120 | 1 | .93-1.06 | 1.38 | .25 | .38 | .50 | .50 |
| 08914130 | 1-1/4 | 1.06-1.43 | 1.75 | .38 | .50 | .66 | .63 |
| 08914140 | 1-1/2 | 1.37-1.68 | 2.00 | .38 | .50 | .66 | .63 |
| 08914150 | 1-3/4 | 1.68-1.81 | 2.25 | .38 | .50 | .66 | .75 |
| 08914160 | 2 | 1.93-2.12 | 2.50 | .38 | .50 | .81 | .75 |
