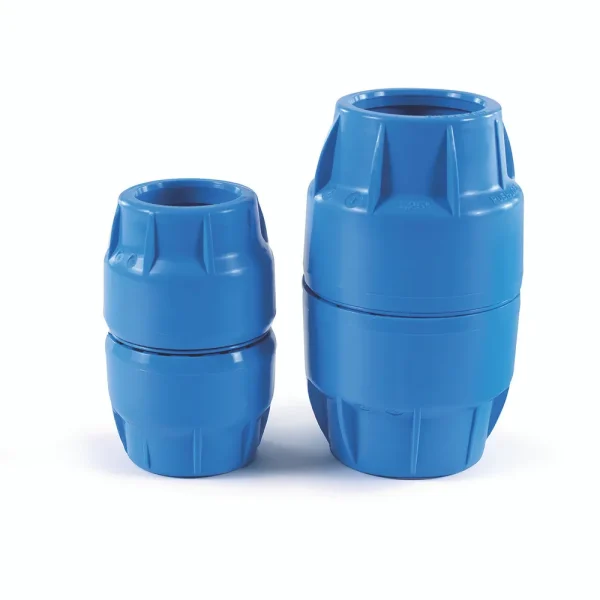

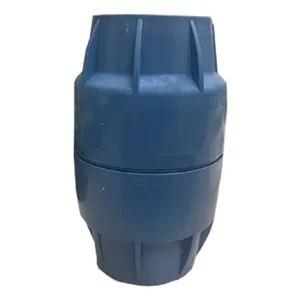

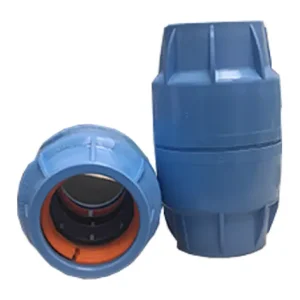

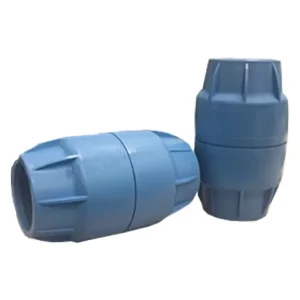

Condux HDPE Push-Lock Comfit Couplers are advanced Hi-Tech couplers designed specifically for HDPE cable ducts. Each coupler is leak-tested to 230 PSI and built to resist corrosion and most chemicals, ensuring reliable performance in tough environments.
Developed to meet the demands of leading cable and duct manufacturers, utilities, and contractors, Comfit couplers are ideal for both blowing and pulling applications. Their compact profile minimizes installation challenges in manholes, narrow trenches, and plowing machines.
The innovative push-fit design guarantees quick, secure, and airtight connections—simply push the duct ends into the coupler for a locked assembly. No special tools are required, making installation and disassembly fast and easy.
Specifications:
| Size | Nominal OD | Duct OD Working Range | Color | Length | Tensile Pullout (lbs) MIN-MAX | Max Pressure |
| 1.00″ | 1.315″ | 1.305″ – 1.325″ | Orange | 3.5″ | 600-800 | 250 |
| 1.25″ | 1.660″ | 1.650″ – 1.670″ | Orange | 5″ | 700-900 | 250 |
| 1.50″ | 1.900″ | 1.890″ – 1.910″ | Orange | 5.5″ | 700-1000 | 250 |
| 2.00 | 2.375″ | 2.365″ – 2.385″ | Orange | 7.5″ | 2000-2400 | 250 |
