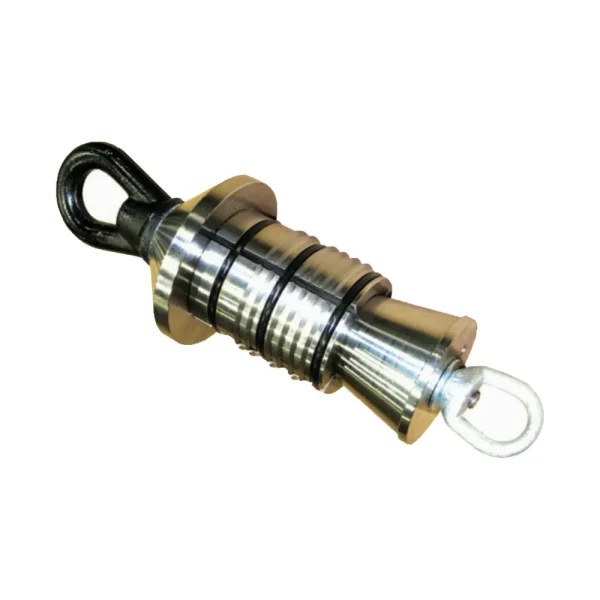

Condux PE & PVC Non-Sleeved Pulling Eyes
The Condux Polyethylene and PVC Non-Sleeved Pulling Eyes offer superior gripping power with a watertight design. The non-sleeved option features a highly rigid center rod to resist bending and a steel tapered lead cone that matches the outer diameter of the conduit.
Key features of the watertight pulling eyes include:
| Conduit ID | |||||||
| Part # |
Size (in) |
Length (in) |
Min. |
Max. | Lead Cone OD (in) |
Duct Type |
Nom. Duct ID (In) |
| 08220020 |
2 |
8.18 | 1.88 | 2.15 | 2.83 | 2.0 SDR 11.0 | 1.92 |
| 2.0 SCH80 | 1.94 | ||||||
| 2.0 SDR 13.5 | 2.00 | ||||||
| 2.0 SDR 15.5 | 2.05 | ||||||
| 2.0 SCH 40 | 2.07 | ||||||
| 2.0 SDR 17.0 | 2.08 | ||||||
| 08220030 | 3 | 11.89 | 2.69 | 3.13 | 3.50 | 3.0 SDR 11.0 | 2.83 |
| 3.0 SCH 80 | 2.90 | ||||||
| 3.0 SDR 13.5 | 2.95 | ||||||
| 3.0 SDR 15.5 | 3.02 | ||||||
| 3.0 SDR 17.0 | 3.06 | ||||||
| 3.0 SCH 40 | 3.07 | ||||||
| 08220611 | 4 | 14.11 | 3.50 | 4.20 | 4.81 | 4.0 SDR 7.0 | 4.026 |
| 4.0 SDR 9.0 | 4.026 | ||||||
| 4.0 SDR 11.5 | 4.026 | ||||||
| 4.0 SDR 15.0 | 4.026 | ||||||
| 08220050 | 5 | 18.45 | 4.25 | 5.06 | 5.56 | 5.0 SDR 11.0 | 4.49 |
| 5.0 SDR 13.5 | 4.69 | ||||||
| 5.0 SDR 15.5 | 4.80 | ||||||
| 5.0 SDR 80 | 4.81 | ||||||
| 5.0 SDR 17.0 | 4.87 | ||||||
| 5.0 SDR 21.0 | 5.00 | ||||||
| 5.0 SCH 40 | 5.05 | ||||||
| 08220060 | 6 | 19.6 | 5.06 | 6 | 6.63 | 6.0 SDR 11.0 | 5.35 |
| 6.0 SDR 13.5 | 5.58 | ||||||
| 6.0 SDR 15.5 | 5.72 | ||||||
| 6.0 SCH 80 | 5.76 | ||||||
| 6.0 SDR 17.0 | 5.80 | ||||||
| 6.0 SDR 21.0 | 5.96 | ||||||
