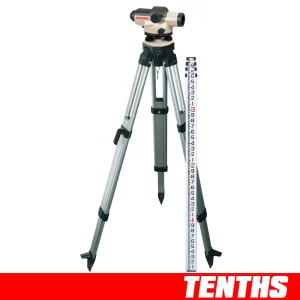

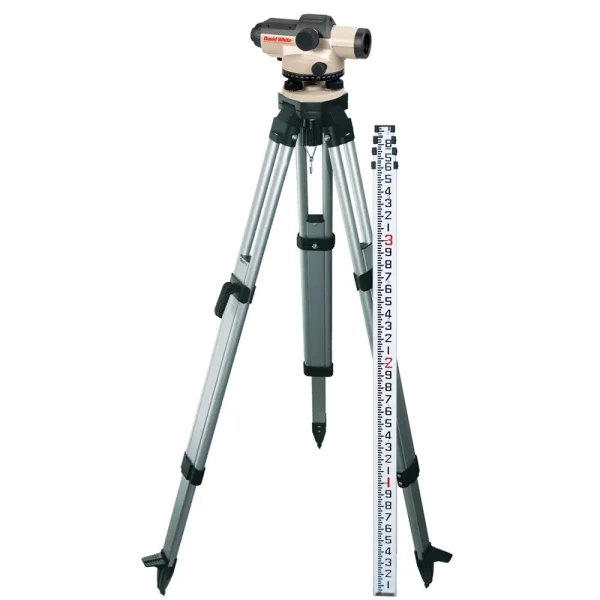

David White 45-8926-1T TENTHS Package 26-Power AUTOMATIC LEVEL
with 13-Foot Measuring Rod with measurements in TENTHS and Aluminum Tripod.
Make every leveling job faster and easier with David White designed automatic levels.Superior design sighting scope and bubble vial are built into the housing for greater durability.
- Lock-Out Device- Protects compensator during transport
- Larger Aperture- Allows more light for a sharper image
- Wire-Hung Magnetically Damped Compensator- Holds the level line of sight within ±15 arc minutes of level
- Soft Control Knobs- Easier to grip
- Horizontal Circle- Easy-to-read white on black graduations
- Infinite Tangent Screw
|
| David White 45-8926-1T AUTO LEVEL Package INCLUDES |

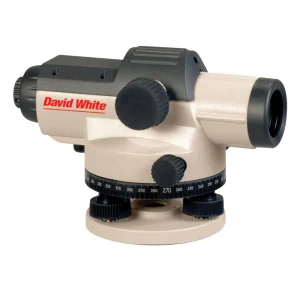

- 45-8926 (AL8-26) AUTOMATIC Level Instrument
- 13-Foot Measuring Rod with Measurements in TENTHS
- Aluminum Tripod
- Adjustable Tools
- Lens Cap
- PlumbBob
- Heavy-Duty Hard CarryingCase
- Owners Manual
- 2-Year Warranty
|
| David White 45-8926-1T Automatic Level SPECIFICATIONS |
Accuracy: 1/16”@100-foot Working Range: 300-foot
- Clear obj. aperture: 1.4-inch
- Setting accuracy: +/- 0.8-inch
- Deviation for 1 km double-run leveling: 1.5 mm
Telescope:
- Magnification: 26 x
- Image: Erect
- Length: 8.3-INCH
- Shortest focusing distance: 1’
- Field of view: 1° 30-Foot
- Stadia ratio: 100
Compensator
- Leveling range: ±15-Feet
- Magnet dampening: Yes
- Sensitivity of bubble: 8-feet
Horizontal Circle
Other
- Instrument weight: 3.7 lbs
- Mounting thread: 5/8-11
- Protection: P54
|
David White 45-8926-1T Auto Level APPLICATIONS
|
- Short range leveling
- Turning angles, establishing 90° reference lines
- Aligning Forms
- Aligning Walls
|
| David White AL8-SERIES Auto Level TECHNICAL DATA |
| AL8 Series |
AL8-32
|
AL8-26 |
| WORKING RANGE |
Up to 400 feet |
Up to 300 feet |
| LEVELING ACCURACY |
1⁄32-inch at 100 feet |
1⁄16-inch at 100 feet |
FIELD OF VIEW
|
1° 30-foot
|
1° 30-foot |
MIN. FOCUS DISTANCE
|
< 1.0 feet |
< 1.0 feet |
COMPENSATOR RANGE
|
±0.5-inch, +/-15-foot range |
±0.5-inch, +/-15-foot range |
CLEAR OBJ. APERTURE
|
1.6-inch
|
1.4-inch
|
DEVIATION FOR 1KM DOUBLE RUN LEVELING
|
1.0 mm
|
1.5 mm |
| TELESCOPE |
| MAGNIFICATION |
32-POWER |
26-POWER |
| IMAGE |
ERECT |
ERECT |
LENGTH
|
8.3-inch |
8.3-inch |
SHORTEST FOCUS DISTANCE
|
1-foot
|
1-foot |
FIELD OF VIEW
|
1° 30-foot |
1° 30-foot |
STADIA RATIO
|
100 |
100 |
| COMPENSATOR |
LEVELING RANGE
|
±15 foot
|
±15 foot |
MAGNETIC DAMPENING
|
yes
|
yes |
SENSITIVITY OF BUBBLE
|
8-foot
|
8-foot |
HORIZONTAL CIRCLE
|
| DIAMETER |
4.3-inch |
4.3-inch |
CIRCLE GRADUATION
|
1° |
1° |
| OTHER |
INSTRUMENT WEIGHT
|
3.7 lbs
|
3.7 lbs |
MOUNTING THREAD
|
5/8-11 |
5/8-11 |
PROTECTION
|
IP54 |
IP54 |
| WEIGHT |
| INSTRUMENT ONLY |
3.25 pounds |
3.25 pounds |
| TRIPOD |
| TYPE |
5/8-11 thread |
5/8-11 thread |
|
| David White Meridian Level-FEATURES |
- OBJECTIVE LENS
- OPTICAL PEEP SIGHT
- BUBBLE VIAL MIRROR
- LENS SUNSHADE
- EYEPIECE COVER
- ADJUSTABLE SCREW FOR SIGHTING LINE
- EYEPIECE
- CIRCULAR BUBBLE VIAL
- COMPENSATOR LOCK
- HORIZONTAL CIRCLE REFERENCE MARK
- HORIZONTAL CIRCLE
- ADJUSTABLE SCREW OF CIRCULAR BUBBLE VIAL
- LEVELING SCREW
- TRIPOD MOUNT 5/8-11 (on the rear side)
- HORIZONTAL DRIVE SCREW
- FOCUS KNOB
- ALLEN KEY
- PLUMB-BOB
|
|
