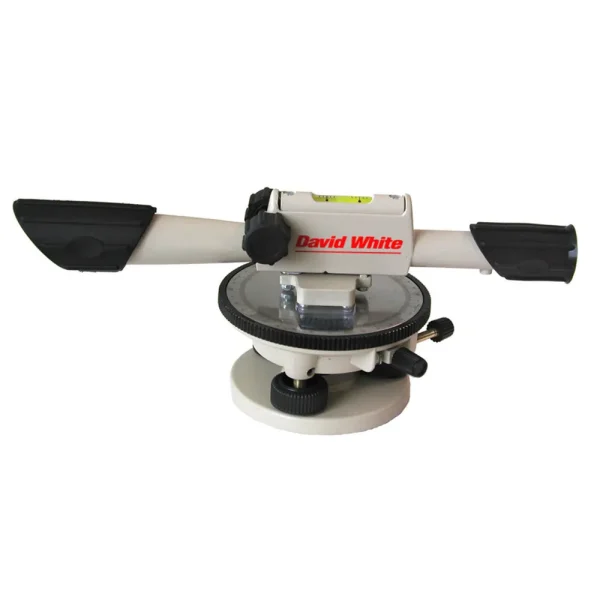

David White 44-8824 22-Power MERIDIAN LEVEL
Designed for light construction work – leveling and turning angles.
- ± 1/4-inch at 100-feet leveling accuracy
- Up-to 200-foot range
- Horizontal Circle– Graduated to single degrees and reads by vernier direct to 1/4 degree (15 minutes)
- Horizontal Lock and Tangent Screw– Provides precise movement control
- Built-in Sunshade – For clearer sightings
- Leveling Vial – Top mounted for effortless viewing
|
| David White 44-8824 MERIDIAN LEVEL INCLUDES |
- 44-8824 (L6-20) Level Instrument
- PlumbBob
- Heavy-Duty Hard CarryingCase
- Owners Manual
- 2-Year Warranty
|
| David White 44-8824 Level SPECIFICATIONS |
Accuracy: 1/4 in at 100 ft (6mm at 30m)
Range: Up to 200 ft (60m)
Telescope
- Magnification: 22-power
- Length: 10.5” (26.5 cm)
- Minimum Focus: 4 ft (1.2 m)
- Aperture: 0.75″ (19 mm)
- Field of View: 2′ @ 100′ (0.6 m @ 30 m)
- No. of Lenses: 6
Horizontal Circle
- Graduation Diameter: 3.62″ (92 mm)
- Graduations: Each 1°
- Numbers: Each 10°, 0-90-0°
- Vernier: Double direct to 15 min.
Other
- Center: Planar bearing
- Level Vial: 10 min. per 2 mm
- Weight: 3.25 lb (1.5 kg)
|
David White 44-8824 Level APPLICATIONS
|
- Short range leveling
- Turning angles, establishing 90° reference lines
- Aligning Forms
- Aligning Walls
|
| David White 44-8824 Level TECHNICAL DATA |
| RANGE |
Up to 200 feet |
| ACCURACY |
1⁄4-inch at 100 feet |
| TELESCOPE |
| MAGNIFICATION |
22-POWER |
LENGTH
|
10.5-inch |
MINIMUM FOCUS
|
4-foot
|
| APERTURE |
0.75-inch |
FIELD OF VIEW
|
2-foot at 100 feet |
NUMBER OF LENSES
|
6 |
|
| HORIZONTAL CIRCLE |
| GRADUATION DIAMETER |
3.62-inch |
| GRADUATIONS |
Each 1° |
| NUMBERS |
Each 10°, 0-90-0° |
| VERNIER |
Double direct to 15 min. |
VERTICAL ARC
|
| GRADUATIONS |
| NUMBERS |
| CENTER |
| TYPE |
Planar bearing
|
LEVEL VIAL
|
| ACCURACY |
10 min. per 2 mm |
| WEIGHT |
| INSTRUMENT ONLY |
3.25 pounds |
| TRIPOD |
| TYPE |
5/8-11 thread |
|
| David White Meridian Level-FEATURES |
- TELESCOPE OBJECTIVE LENS
- EYEPIECE
- FOCUSING KNOBS
- INSTRUMENT LEVEL VIAL
- HORIZONTAL GRADUATED CIRCLE
- HORIZONTAL VERNIER
- HORIZONTAL CLAMP
- HORIZONTAL TANGENT
- TELESCOPE LOCK LEVER
- VERTICAL ARC
- VERTICAL ARC POINTER
- VERTICAL CLAMP
- VERTICAL TANGENT
- THREE LEVELING SCREWS
- 5/8-11 THREADED BASE
- BUBBLE LEVEL ADJUSTMENT SCREW
|
|
