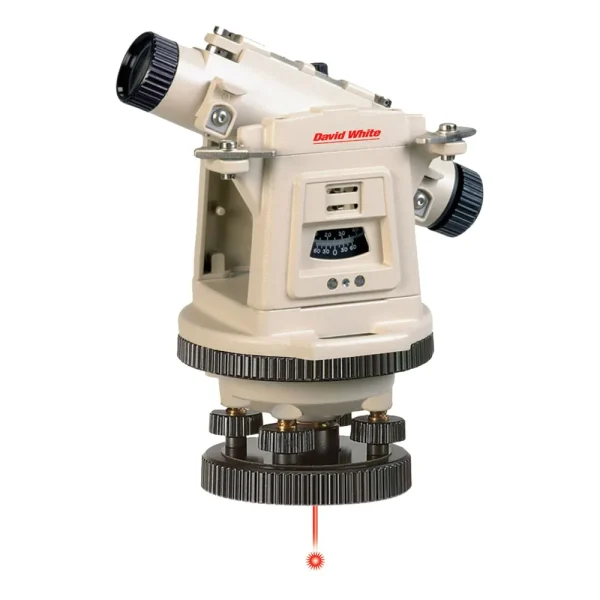

| Rugged and Dependability makes this David White LT8-300LP five-minute instrument the first choice for almost every horizontal and vertical sighting application in construction. The sleek, compact, 26x telescope is engineered to protect against dirt, damage and costly repairs. The horizontal axis features a Trunnion Design for maximum rigidity. Within the protection of the rugged base, the wide-stance ball bearing center guarantees you smooth movement and superior alignment control. The level transit is lined up over a reference point by using a laserplummet, assuring you of precise positioning every time. |
| David White 46-D8872 Universal Level-Transit INCLUDES |
- 46-8872 (LT8-300LP) Level Transit
- Plumb Bob
- Horizontal Circle
- Rain Hood
- Objective Lens Cap
- Heavy-Duty Hard Carrying Case
- Owners Manual
- 2-Year Warranty
|
| David White 46-8872 Universal Level-Transit SPECIFICATIONS |
- Powerful 26 power optics
- Objective 32mm
- leveling accuracy of +/- 3/16-inch at 150-foot
- Up to 400-foot range, minimum focus 6 feet
- Field of View – 1’9″ @ 100 foot
- Vertical Arc and Horizontal circle with locks and tangents
- 1:100 stadia with glass reticle
- Laser Plummet makes set-up of center point quick and easy
- This unit does have Stadia
- Weight 9.5 lbs instrument only
|
David White 46-D8872 Universal Level-Transit APPLICATIONS
|
- Medium Range Leveling
- Turning angles, establishing 90° reference lines
- Determining Vertical Angles, basic grade work
- Checking angles, alignment, and plumb
- Anchor bolt alignment
- Gravity flow pipe laser set-up
- Aligning forms
- Aligning walls
|
| David White 46-8872 Universal Level-Transit TECHNICAL DATA |
| RANGE |
Up to 400 feet |
| ACCURACY |
within3⁄16-inch at 150 feet |
| TELESCOPE |
| LENGTH |
8-1/2 inches |
| MINIMUM FOCUS |
6-feet |
| APERTURE |
1.257 inch |
| POWER |
26X |
FIELD OF VIEW
|
1 foot 9-inch at 100 feet |
NUMBER OF LENSES
|
8 |
| STADIA RATIO |
1:100 |
| HORIZONTAL CIRCLE |
| GRADUATION DIAMETER |
4-5/8 inch |
| GRADUATIONS |
Each 1° |
| NUMBERS |
Each 10°, 0-90-0° |
| VERNIER |
Double direct to 5 min. |
| VERTICAL ARC |
| GRADUATIONS |
Each 1° |
| NUMBERS |
Each 10°, 45-0-45° |
| VERNIER |
Double direct to 5 min. |
| CENTER |
| TYPE |
Wide-stance dual row ball bearings |
| LEVEL VIAL |
| ACCURACY |
110-120 sec. per 2 mm |
| PLATE VIAL |
| ACCURACY |
360 sec. per 2.5 mm |
| WEIGHT |
| INSTRUMENT ONLY |
9.5 pounds |
| TRIPOD |
| TYPE |
Use a heavy-duty 5/8-11 tripod |
|
| David White Universal Level Transit FEATURES |
- TELESCOPE OBJECTIVE LENS
- SIGHTING NOTCHES
- EYEPIECE
- FOCUS KNOB
- INSTRUMENT LEVEL VIAL LAYERS (2)
- HORIZONTAL CIRCLE
- HORIZONTAL CIRCLE LOCK
- HORIZONTAL VERNIER
- HORIZONTAL CLAMP
- HORIZONTAL TANGENT
- TELESCOPE LOCK
- VERTICAL CLAMP
- VERTICAL TANGENT CIRCLE
- VERTICAL ARC
- VERTICAL VERNIER
- SHIFTING CENTER
- FOUR LEVEL SCREWS
- 5/8-11 BASE
- LASER PLUMMET
|
|
