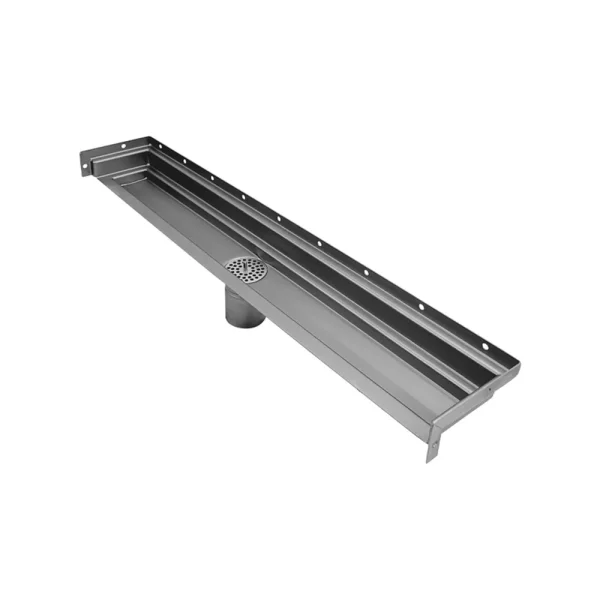

Drains Unlimited DUFR-TF Linear Floor Drain with Three-Side Return Flange
The DUFR-TF Series of linear drains is designed to meet the classic appeal of traditional linear drains with the added benefit of a close-wall installation. The innovative wall-mounted design eliminates the tile strip between the back wall and the drain, typically requiring bonding the waterproofing or floating the finish tile for the same aesthetic appeal.
Features
- DUFR-TF Drain Grates are available in 3 different styles with 3 different finishes
- The Three Side Return Flange is ideal for wall-to-wall installations with 1/8″ to 3/8″ thick wall tiles
- Made from heavy-duty 304 stainless steel
- Textured flange ensures a tight waterproof membrane seal between the flange and membrane
- Removable grate for easy cleaning and maintenance
- Single slope to drain
- 2-7/16in (61.13mm) outlet size
- Excellent corrosion resistance
- Shallow V-bottom design for better water flow to the drain outlet
- SANS10400 compliant 75mm water seal
- Textured flange to ensure a tight waterproof membrane seal to the drain body
- ***Full length measured between finish face of framing
Suitable Substrates
- Concrete
- Exterior glue
- Plywood (Interior only)
- Cement backer board
- Cement mortar bed
- Shower pans
What’s included
- Drain Body
- Select Grate
- Two (2) Strainers
- Grate Hook
