Ebbe America Subfloor Lowering Kit

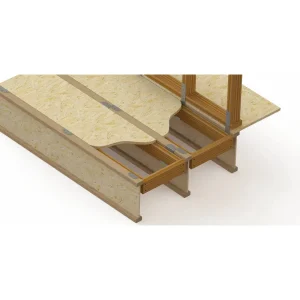

The Ebbe Subfloor Lowering Kit quickly and easily lowers a subfloor between the joists for a barrier-free, curbless shower installation. This kit is perfect for I-joists because you install the bracket on top of the I-joist.
Features
- Brackets need to be spaced at a maximum of 36″ to achieve L/360 with a live load of 40PSF and a dead load of 20PSF

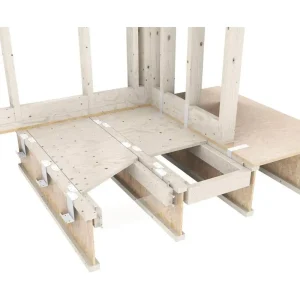

- 2×4 lumber will sit on the brackets, and a 3/4″ plywood subfloor will be built upon that frame
- Kit will lower your floor up to 24 SF
- It avoids joist penetrations and the need for web stiffeners
- Wall brackets can be adapted to be used at joists
- Use of subfloor adhesive at hanger seats is recommended
- If the subfloor is thick, trim the 2×4 so the subfloor is flush with the joist
- Recommended structural grade 2 or better Douglas fir, larch, or pine 2×4 lumber
- 2×4 and subfloor material not included

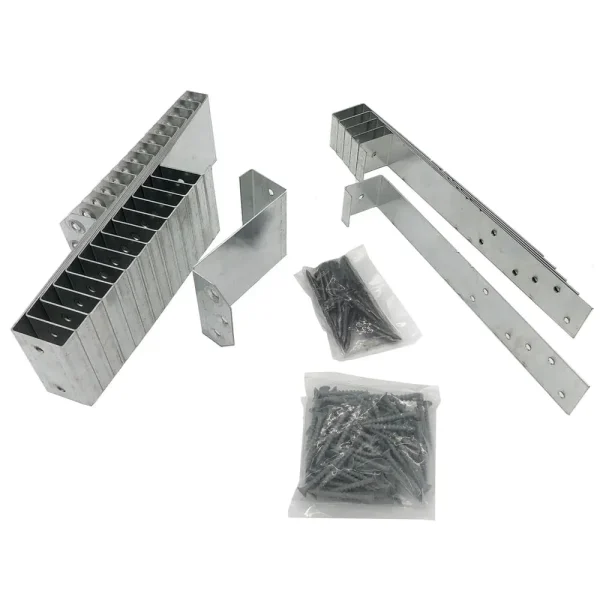

What’s Included?
- 15 Joist Brackets

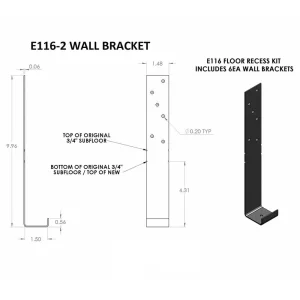

- 6 Wall Brackets
- 36x 1-1/2″Joist Hanger Nails
- 75x 1-5/8″ Wood Screws
