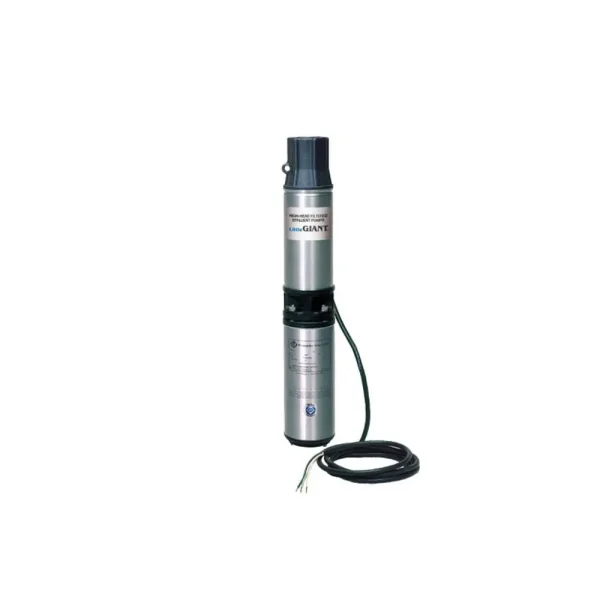

Effluent Pump WE Series Filtered Effluent Pump

Designed to pump treated effluent longer distances than normal effluent sump style pumps, the WE Series is ideal for deep water and higher head pumping applications such as aeration, ornamental fountains, and water fountains. Built with a renowned Franklin Electric submersible motor, the WE Series provides maximum durability with years of reliable service.

Features & Benefits

• 1/2 hp motor
• Heavy-duty, 300 V, 10 ft (3 m) SJOW motor stripped leads
• High-head filter effluent
• Removable built-in check valve
• Designed for continuous duty
• ittle Giant’s WE Series consists of a high-head filtered effluent pump powered by a 1/2 horsepower submersible motor and includes a removable built-in check valve. The high-quality top bearing and stainless steel up thrust washer add resilience and reliability. The WE’s proven “PPO” staging allows close tolerances and increased performance.

• Specifications

  Capacity	10-WE10 – 15 gpm @ 50′ 20-WE20 – 26 gpm @ 50′ 30-WE30 – 30 gpm @ 50′
  Well Size	4″
  Wires	2
  Discharge	1-1/4″ FNPT (31.75 mm)
  Impeller	Celcon
  Electrical	115 V, 60 Hz, 10 A 230 V, 60 Hz, 5 A
  Operation	Manual

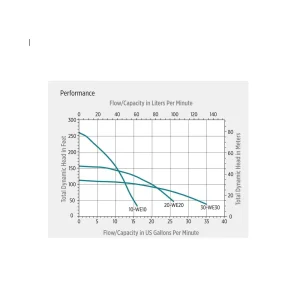

  Head	10-WE10 GPM (LPM)	20-WE20 GPM (LPM)	30-WE30 GPM (LPM)
  50′	15 (56.8)	26 (98.4)	32 (121.1)
  100′	13 (49.2)	20 (75.7)	14 (53)
  150′	10 (37.9)	8 (30.3)	–
  200′	7 (26.5)	–	–
  250′	2 (7.6)	–	–
