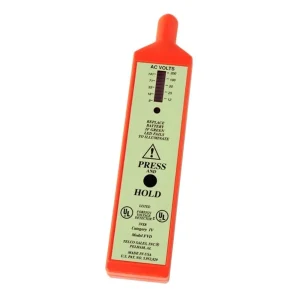

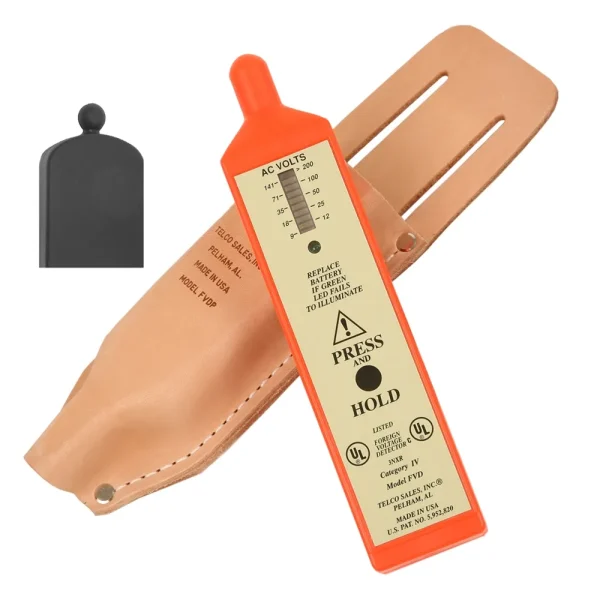

Foreign Voltage Detector with Leather Pouch (ARRIS 803997) – The Telco Sales Foreign Voltage Detector (FVD) is designed to detect potentially hazardous AC voltages without making direct electrical contact. Ideal for professionals in the low-voltage and communications industries, this tool provides early warning of dangerous voltage levels to help keep technicians safe in the field.
The FVD visually displays the detected AC voltage on a 10-step bar graph, while an audible alarm activates if the voltage exceeds 50 volts.
Features:
- Provides advance warning of hazardous voltages
- Detects voltage without direct electrical contact
- Dual indication: visual bar graph and audible alarm
- Built-in filters suppress 20Hz ringing and radio signal interference
- Constructed from non-conductive materials for added safety
- Exceeds dielectric strength tests greater than 20 kV
- Factory-adjustable test parameters
- UL listed to U.S. and Canadian safety standards
- Made in the USA
Includes:
- (1) Foreign Voltage Detector

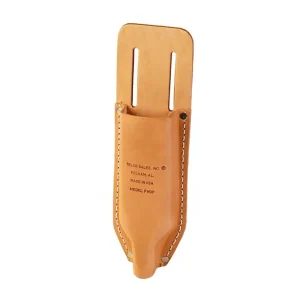

- (1) Leather Pouch
- (1) Conductive Cap
Specifications:
Audible Warning:
- Frequency: 2800 300 Hz
- Level: Approximately 75 dba @ 1 foot
- Threshold: >50 Vrms sensed voltage
Technical:
- Range: 0 to 200 Vrms (higher voltages are displayed as >200 volts)
- Sensing Type: AC only
- Frequency: 50 to 150 Hz
- Display: 10 step LED bar graph, Log response
- Operating: -20 C to 50 C at 10% to 95% RH, non-condensing
- Storage: -40 C to 85 C at 0 to 100% RH, non-condensing
- Size: 1.7” x .9” x 7.8”
- Weight: 4.8 ounces
- Battery: One (1) 9 Volt Alkaline
- Barrery Life: > 9 hours continuous when idle (bar graph LED not activate)
- Shock & Vibration: TR-EOP-000063 Compliant
