Gemini Apollo Diamond Blade Cartridge Assembly | Double Sided Standard Sintered Blade Cartridge

Gemini Apollo Diamond Cartridge Assembly

The introduction of removable blade cartridges for the Gemini Apollo Ring Saw makes blade changes easy. All cartridges include a blade.

Apollo Sintered Blade Cartridge Assembly

Double-sided, diamond-coated blades cut forward, backward, and curved. Each blade is made of powdered metal, with diamonds dispersed evenly throughout for long-lasting performance. Sintered blades are great for making curved cuts in thick materials. The cartridge includes a Standard or Fine Double-Sided Ring Blade, 3 orange groove grommet assemblies, part #1062, and 2 red cone grommet assemblies, part #1119.

Double Sided Standard Sintered Blade

• Cuts thick glass, stone, marble, granite

Double Sided Fine Sintered Blade

• Specifically for thin glass only

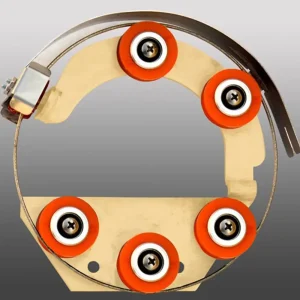

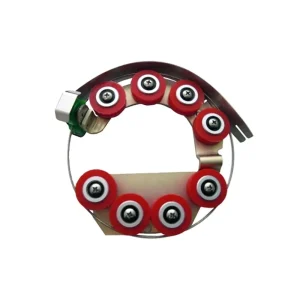

Apollo Wire Cartridge Assembly

The wire cartridge accepts Taurus 3 Standard, Slim, and Dichroic blades. Wire blades feature an electroplated diamond rim secured with nickel and are ideal for intricate omnidirectional cutting through thin materials such as 1/8″ stained glass, 1/4″ acrylic, wall tile, and other soft materials. Each cartridge assembly contains 4 orange groove grommets (part #1062), 1 orange groove grommet (part #1062), 2 large red gear grommets (part #1119), and a splash guard (completely assembled).

Standard Wire Blade

• General purpose, omnidirectional cutting through a variety of thin materials (avoid fused glass and other thick materials)
• Aggressive grit
• Wire shape: Round 0.072″ diameter
• Max material thickness: 3/8″

Super Slicer Blade Kit

• It can use more of your material and, as a byproduct, actually cuts faster than any of “our “Ring Blades.”
• Cuts glass, tile, stone, shell, nonferrous metals, hard plastics such as acrylic and lexan, and anything that has a similar density to these materials
• It has a finer diamond, so the cut is even smoother than all the other blades except for the dichroic blade

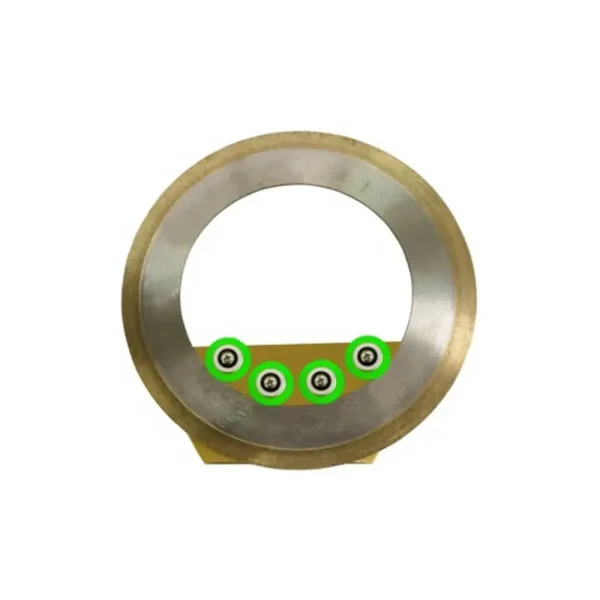

Apo” lo 6″ Rigid Ring Blade Cartridge Assembly

Rigid blades are designed specifically for straight cuts. Each cartridge includes a 6″ Standard or Fine Rigid ring blade and 4 green groove grommet assemblies.

6″ Standard Rigid Blade

• For thick materials
• Aggressive sintered blade for straight cuts through thick glass, stone, marble, granite
• 80 grit

6″ Rigid Fine Blade

• Sintered blade for straight cuts through thin glass, stained glass, fused glass, glass tile
• 150 grit
