HUNTER EZ-1

Bring two-wire technology to more projects than ever before with the revolutionary, lowcost, and hassle-free EZ Decoder System for Pro-C®, HPC, ICC2, and HCC Controllers.
Decoder Output Module: EZ-DM
Height: 41/ 2″
Width: 21/ 2″
Depth: 15/8″
Decoder Output Module: PC-DM
Height: 3″
Width: 3″
Depth: 11/4″
Pro-C Controller
DECODER MODELS
Model Description
EZ-DM Decoder output module for HCC and ICC2 Controllers
PC-DM Decoder output module for HPC and Pro-C Controllers

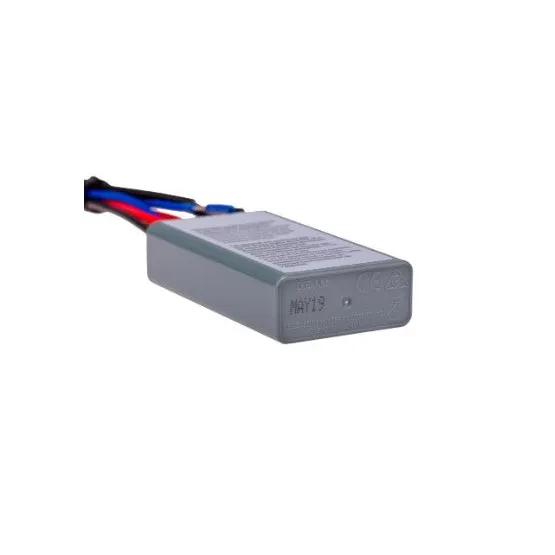

EZ-1 Single-station decoder with status LED
EZ-DT EZ Decoder Diagnostic Tool
KEY BENEFITS
• Number of stations:
– Pro-C/HPC Controllers: Up to 28, plus master valve
– ICC2/HCC Controllers: Up to 54, plus master valve
• No special wire or connectors required
• No special grounding or surge arrestors required in-line to maximize time
and money savings during installation
• Programmable decoders with no need to input individual serial numbers
• P/MV can activate via the two-wire path for distant master valves
• Permits hybrid operations of side-by-side conventional and
decoder stations for added flexibility
• EZ-1 Decoders have built-in status LED for positive diagnostics
