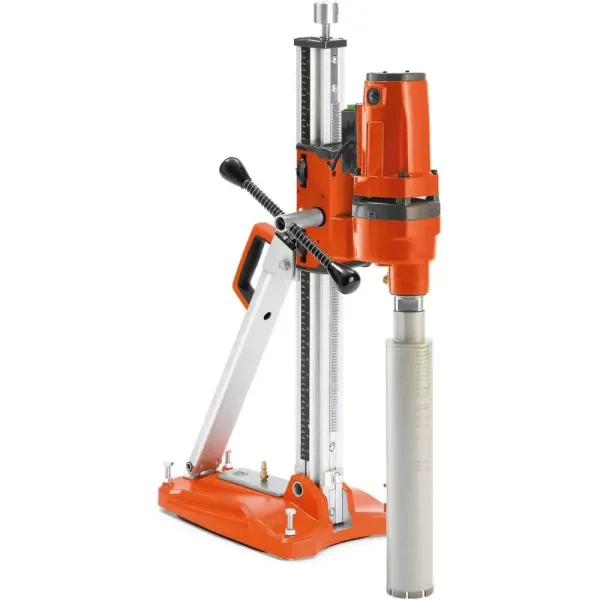

Husqvarna DMS 180 Core Drill Rig

Husqvarna DMS 180 Core Drill Rig

The Husqvarna DMS 180 is a lightweight core drill rig for the rental shop or professional who requires high performance in a compact machine.

Features

• It comes standard with a combination vacuum/anchor base
• Vacuum sold separately
• The stand can be tilted from 0 to 45 degrees for angle drilling
• Designed to fit most hand-held core drill motors

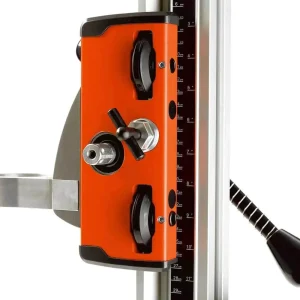

• V-groove roller carriage allows for accurate alignment that requires minimal adjustment
• Drill holes up to 6″ (153mm) in diameter
• 19″ drilling stroke
• 1,725 watts/15 amp motor with an 800 rpm single-speed gearbox and electric overload protection
• Mechanical clutch reduces the risk of motor damage

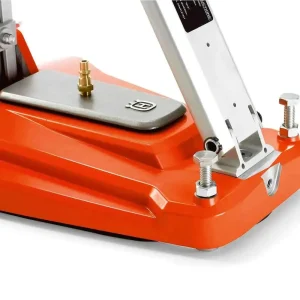

• Base Material Cast aluminum, 4 leveling screws

Benefits

• Light and compact, it is easy to transport and mount the stand
• Fast set-up with the integrated vacuum base eliminates anchoring or clamping
• Equipped with stabilizing guide rollers for accurate drilling as well as cleaner, straighter holes
• The back support is clamped to the column with a rigid patented locking system, stabilizing operations
• Adjustment screws on the base plate, carriage, and back support can be adjusted with the feed handle
• The stand has a jacking screw on the top for easy clamping of the stand
