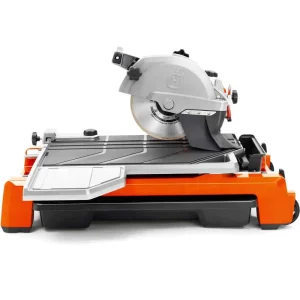

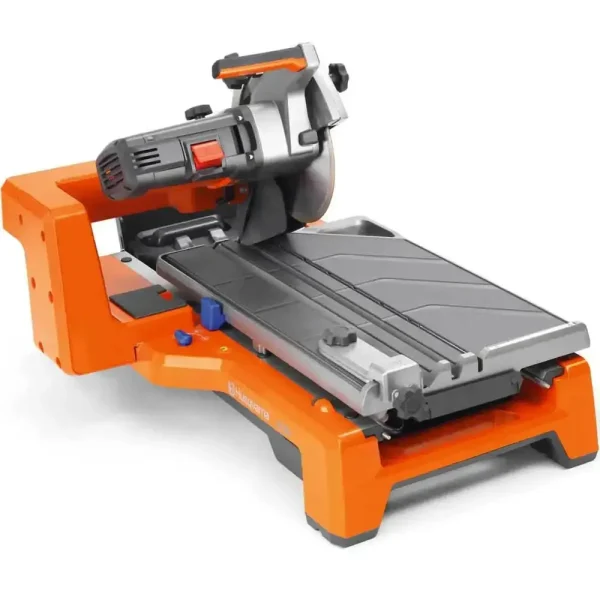

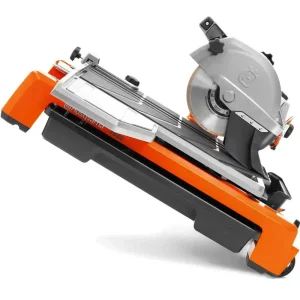

Husqvarna TS 60 Tile Saw
Husqvarna TS60 Tile Saw is a lightweight & efficient wet saw with a large cutting capacity (28″ x 28″ rip; 20″ x 20″ diagonal) for tile & masonry material. TS60 features a plunge-cutting head that tilts to make easy miter cuts at 45 degrees. Husqvarna’s patented Jet Stream Water Containment System minimizes slurry & water over-spray.
Features
- Includes
- Cuts tile and brick up to 20″ diagonal or 28″ rip cuts
- Innovative, patented Jet Stream Containment System keeps water inside the water pan
- Able to make plunge and miter cuts
- Extra long 26″ cart for better tile support
- Equipped with Elgard, which indicates, via the LED, when the machine is overloaded to prevent motor damage and increases motor life
- Electronic Soft-start helps starting with normal, slow-acting fuses and increases brush and motor life
- Integrated wheels in frame allow saw to be pulled independently like a roller bag
- Water flow system designed to keep pump protected from slurry
- Larger blade flanges provide more support for blade core
What’s Included?
- Husqvarna TS 60 Tile Saw
- 10″ Vari-Cut Porcelain Diamond Blade
- Submersible Water Pump
- Water Pan
- Rip Guide
- Removable Cart Extension
- Operator’s Manual
| Husqvarna TS60 Specifications |
| Power |
Direct Drive – 1-1/2 hp |
| Voltage |
120V |
| Length of Cut |
28 in |
| Diagonal Length of Cut |
20 in |
| Arbor |
5/8 in |
| Blade Capacity |
10 in |
| Depth of Cut |
2-3/4 in |
| Weight |
79 lbs |
| Dimensions |
37 in x 28 in x 18 in |
