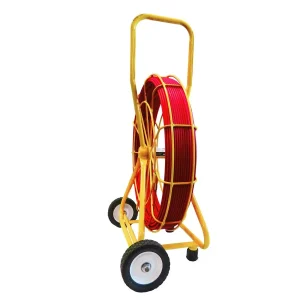

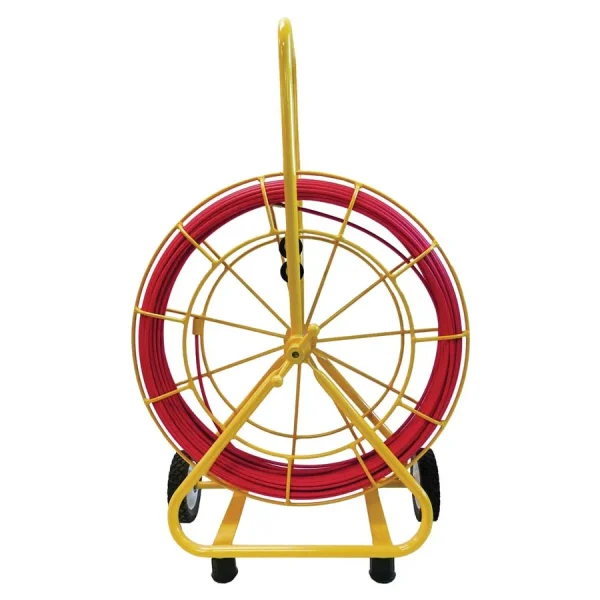

Jameson Duct Hunter Traceable Rodder – 1/4″ – The Jameson Duct Hunter™ is a traceable duct rodder that provides a non-invasive, efficient solution for locating and mapping underground ducts and pipes—eliminating the need for unnecessary digging or trenching.
This detectable fiberglass rod contains a built-in copper trace wire that can be located at depths of up to 10 feet. When connected to a signal transmitter, the wire becomes energized, allowing an electromagnetic signal to be detected by a hand-held receiver—making it easy to trace the entire duct or pipe route accurately.
Each Duct Hunter™ includes a male end ferrule, pulling eye, and a complete accessory kit, all neatly attached to the frame for convenient use in the field.
Features:
- 4″ minimum bend radius for smooth navigation through conduit bends
- Ideal for locating sewer laterals to verify no cross bores have occurred
- Effective for tracing ductile iron, plastic, tile, or concrete pipes
- Designed for use in conduit with 1″ to 2″ inside diameter
- Tall handle and wide wheelbase for easy transport and stability
- Allows tracing of longer sewer laterals with precision and control
- Applications:
- Trace depths up to 10 feet
- Confirm cross-bore safety in sewer laterals
- Locate and map ductile iron, plastic, tile, or concrete pipe systems
Specifications:
- Lengths Available: 300′ – 600′ (91.4 – 183 m)
- Recommended Conduit Size: 1″ – 2″ (25 – 50 mm)
- Minimum Bend Radius: 4″ (10.2 cm)
- Pull Strength: 400 lbs
- Accessory Kit: Included (Model 16-14-AK)
- Dimensions: 36.25″ x 24.0″ x 13″ (92.1 x 61 x 33 cm)
- Weight: 28.0 – 39.0 lbs. (12.7 – 17.7 kg)
- Male End Ferrule Thread: 1/4″ – 20
