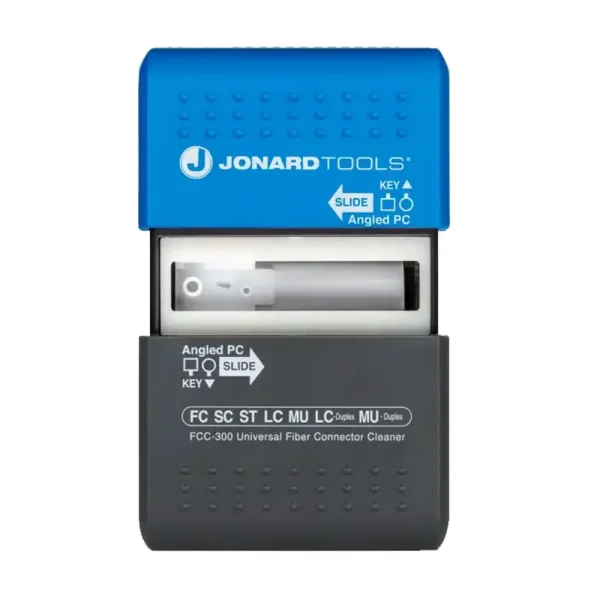

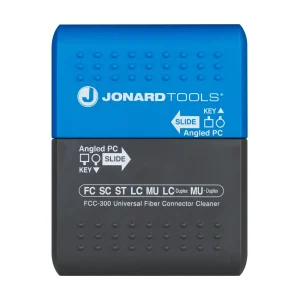

Jonard Universal Fiber Connector Cleaner (JN FCC-300)
The FCC-300 Universal Fiber Connector Cleaner features innovative Slide-Guide technology, ensuring stable and consistent cleaning performance for a wide range of fiber connectors. Key features include:
- Patent-pending “Clean and Advance” tape technology, providing a fresh cleaning surface with each swipe to extend the tool’s life and reduce waste
- Cleaning and tape advancement in both directions, requiring only one swipe to clean the connector end-face
- Compatible with Simplex and Duplex fiber applications, supporting both PC and APC end-face designs
- Compact, portable design allows for over 500 cleanings
- Static-free housing and cleaning cloth, ideal for ESD-safe environments
- Suitable for a variety of applications, including satellite communication, maritime optical networks, aviation, broadcasting, data centers, and more
- Crush-resistant to over 250N and impact-resistant to survive drops of up to 1.5 meters
Applicable Connectors:
- Simplex FC, SC, ST, LC, and MU (for PC and APC)
- Duplex LC/PC (Standard Pitch 6.25 mm and Narrow Pitch 5.25 mm)
- Duplex MU/PC (Standard Pitch Width 4.5 mm)
Connector Type
Connector Type: Simplex FC, SC, ST, LC and MU
Specifications:
| Fiber Connector: |
FC, LC, MPO, SC, ST, MU, LC-Duplex, MU-Duplex |
| Number of Cleanings: |
500+ |
| Dimensions: |
2 5/8″ x 1 1/8″ x 3 1/2″ (6.67 cm x 2.86 cm x 8.89 cm) |
| Weight: |
0.201 lb (91.17 g) |
