LaserLine GR1450 15-Foot Direct Reading Laser Grade Rod

Original price was: $295.00.Current price is: $88.50.

Availability: 7 in stock

🚚 Free Shipping over $39
✓ Premium Quality
🔒 Secure Payments
↻ Money Back Guarantee
SKU: LaserLine GR1450
CATEGORY: Accessories & Parts
Description

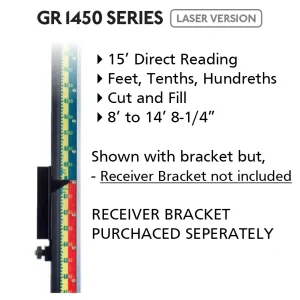

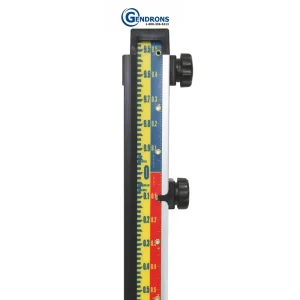

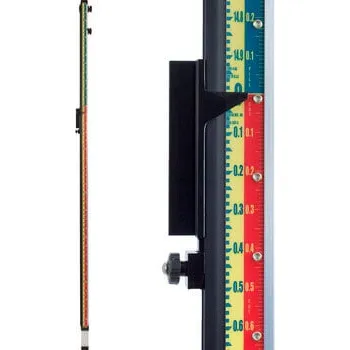

GR Series Direct Reading (Lenker Style) LASER Grade Rod

Measurements: Feet, Tenth, Hundreths, PLUS Cut and Fill
– Receiver Grade Rod Bracket is NOT INCLUDED / Purchased Seperately
– Grade Rod Bracket is SPECIFIC to Receiver Model. ((See Chart Below))

This rod is called a 15-foot Lenker Rod. Actual

GR1450 is used in conjunction with a Laser and Laser Receiver. The purchase of an option Grade Rod Bracket is required for use. These grade rods are the number one seller in the USA, and there’s a reason — Tremendous Quality. Tough, lightweight, and versatile, our direct reading (lenker style) rods bear the true test of quality in the field, and hold up exceptionally well. This Rod is lengths and increments in tenths, metric, and inches.

HOW THEY WORK

Direct Reading/True Elevation Grade Rod

Direct Reading, or True Elevation (also known as Lenker style) is a Grade Rod with a moveable tape face
allowing you to set the actual benchmark elevation, or any elevation, above or below the bench into the
rod. The actual true elevation above sea level is read on these rods, thus eliminating errors caused by adding
or subtracting. Since no math is involved, grade shots are much faster than conventional style rods.
On most jobsites, the bench elevation is typically established by survey, and all elevations on that project are
above that or below primary bench elevation.

EXAMPLE:

In the USA, these elevations are typically represented in feet, tenths and hundredths of a foot as per the example.
