Availability: 7 in stock

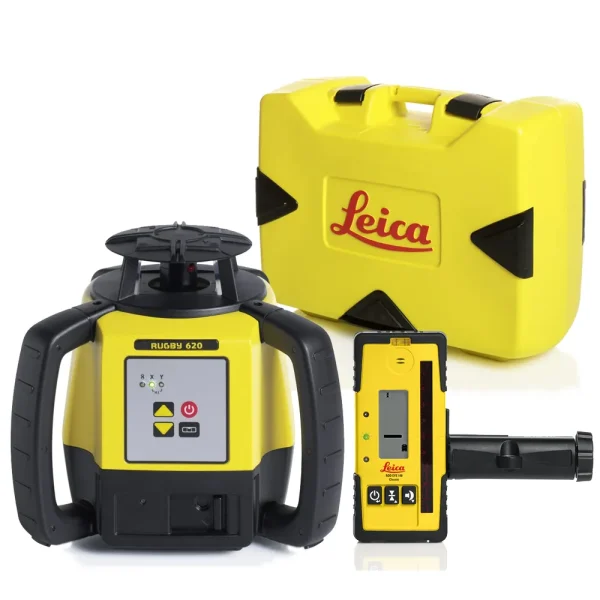

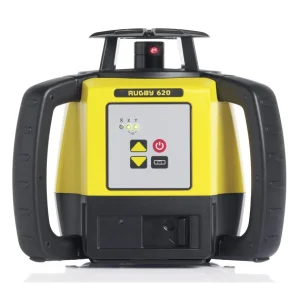

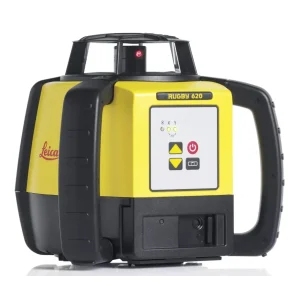

Overview for the Leica 6005983 Rugby 620 Red Beam Rotary Laser with Rod Eye 140 and Alkaline Battery
The rotating laser is designed for formwork and concrete applications. It comes with an alkaline battery pack and classic receiver, offering an operating range of 3,600′ (1,100 m). It features an IP67 protection class, making it splash, water and dustproof.
Leica Rugby 620 RED Beam Rotary Laser Package INCLUDES
Leica Rugby 620 Rotary Laser SPECIFICATIONS:
| Technical Data | Rugby 610 | Rugby 620 | Rugby 640 | Rugby 670 | Rugby 680 |
| Weight | 5.2 lbs | 5.2 lbs | 5.6 lbs | 5.6 lbs | 5.6 lbs |
| Functionality | – Self-Leveling – Horizontal – One Button Laser |
– Self-Leveling – Horizontal – Single Axis Manual Slope |
– Self-Leveling – Horizontal and Vertical – Dual Axis Manual Slope – 90° Plumb Beam UP |
– Self-Leveling – Horizontal – Single Axis Dial-in Grade |
– Self-Leveling – Horizontal – Dual Axis Dial-in Grade |
| Product Type | General Construction | General Construction | Multi-Purpos Horiz / Vert | Semi-Automatic Grade | Semi-Automatic Grade |
| Laser Class | CLASS 2 | ||||
| Laser Type | 635 nm (visible beam) | ||||
| Plumb Up | – | – | Yes | – | – |
| Measured in 68° F Horizontal / Vertical |
+/- 3/32 inch at 100 feet | +/- 1/16 inch at 100 feet | |||
| Grade Range | – | – | – | +/- 8% SG | +/- 8% SG |
| Smart Slope | – | – | – | YES | YES |
| Rotation – RPS | 10 | 10 | 0, 2, 5, 10 | 10 | 10 |
| Scanning – degrees | – | – | 10, 45, 90 | – | – |
| Scan90 | – | – | YES | – | – |
| Beam Down | – | – | YES | – | – |
| Sleep Mode | – | – | YES | – | – |
| Range (diameter) Basic | 1,650 feet | 2,000 feet | 1,650 feet | 2,000 feet | 2,000 feet |
| Range (diameter) RE140/160 | 3,600 feet | ||||
| RF remote control (diameter) | – | – | 650 feet | – | – |
| Li-Ion battery (operation) | 40+ hours | 40+ hours | 40+ hours | 40+ hours | 40+ hours |
| Alkaline battery (operation) | 60+ hours | 60+ hours | 60+ hours | 60+ hours | 60+ hours |
| Working Temp Range | -4 to +122° F | -4 to +122° F | -4 to +122° F | -4 to +122° F | -4 to +122° F |
| Storage Temp | -40 to +152° F | -40 to +152° F | -40 to +152° F | -40 to +152° F | -40 to +152° F |
| Seal (both incuding and excluding battery pack) |
IP67 | IP67 | IP67 | IP67 | IP67 |
| Warranty | 3 years no cost (see PROTECT by Leica Geosystems policy for life time coverage | ||||
| Laser Receivers | |||||

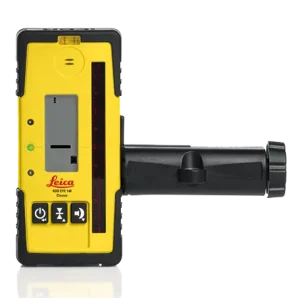

| Technical Data | Rod Eye Basic | Rod Eye 140 Classic | Rod Eye 160 Digital | ||
| Model Number | 789922 | 789923 | 789924 | ||
| Working Diameter | 2,000 feet | 4,430 feet | 4,430 feet | ||
| Extended detection window | 1.4 inch | 5 inch | 5 inch | ||
| Numeric readout height | – | – | 3.5 inch | ||
| Detectible spectrum | 600 nm to 800 nm | 600 nm to 800 nm | 600 nm to 800 nm | ||
| Detectible Accuracies | Rod Eye Basic | Rod Eye 140 Classic | Rod Eye 160 Digital | ||
| Very fine | – | – | +/- 0.02 inch | ||
| Fine | +/- 0.04 inch | +/- 0.04 inch | +/- 0.04 inch | ||
| Medium | – | +/- 0.08 inch | +/- 0.08 inch | ||
| Course | +/- 0.12 inch | +/- 0.12 inch | +/- 0.12 inch | ||
| Very Course | – | – | +/- 0.20 inch | ||
