Overview for the Leica 6019426 K2 Rugby 620 Red Beam Rotary Laser with Rod Eye 120 – Large All in ONE Case, 14-foot Rod/INCHES and Tripod by Rechargeable Battery

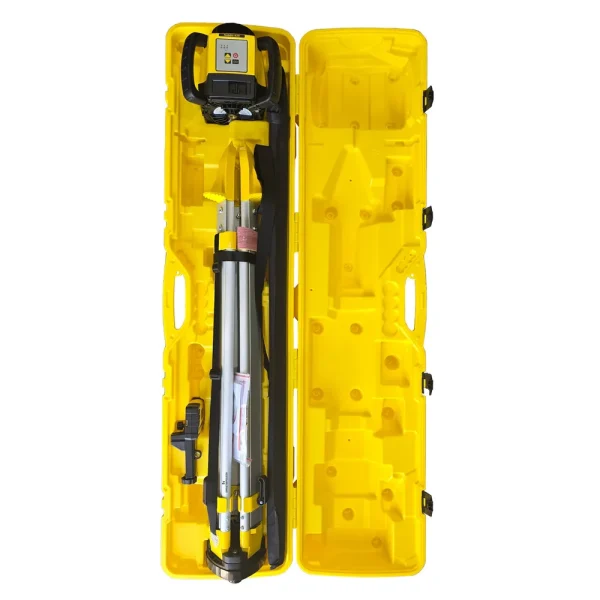

This Rugby 620 Series All in One Case allows you to keep your laser, receiver, battery, charger, triod and grade rod all together for quick set-up and protected from the elements. GRAB AND GO with confidence knowing that you have everything you need for sitework and elevation control!!!

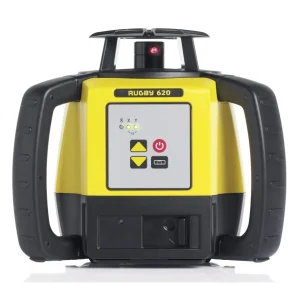

The rotating laser is designed for formwork and concrete applications. It comes with an alkaline battery pack and classic receiver, offering an operating range of 3,600 feet. It features an IP67 protection class, making it splash, water and dustproof.

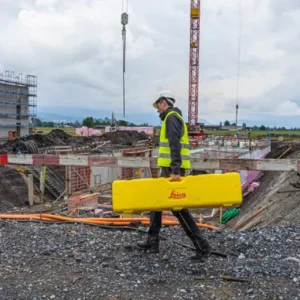

This new All-in-One Protective Carrying Case allows you to keep all of your kit components in one handy ready to go Case. Protecting your Leica Laser, Receiver, Batteries, Charger, Heavy Duty Tripod, and Grade Rod from the elements.
Leica 6019426 K2 Rugby 620 RED Beam Rotary Laser Package INCLUDES
Leica Rugby 620 Rotary Laser SPECIFICATIONS:

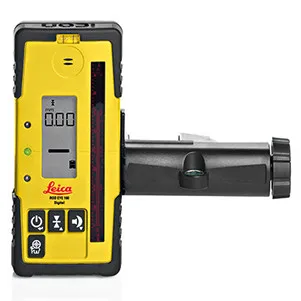

| Leica Rod Eye 160 Digital 789924- Professional Receiver INCLUDED with Leica 6019426 Laser Kit | |
|
Digital readout – the large numbers are clear and easy to read so you can stay on grade. Capture function allows you to store and display a measurement. Anti-strobe protection detects and ignores the flash from strong strobes on the job.
|
|
| Technical Data | Rugby 610 | Rugby 620 | Rugby 640 | Rugby 670 | Rugby 680 |
| Weight | 5.2 lbs | 5.2 lbs | 5.6 lbs | 5.6 lbs | 5.6 lbs |
| Functionality | – Self-Leveling – Horizontal – One Button Laser |
– Self-Leveling – Horizontal – Single Axis Manual Slope |
– Self-Leveling – Horizontal and Vertical – Dual Axis Manual Slope – 90° Plumb Beam UP |
– Self-Leveling – Horizontal – Single Axis Dial-in Grade |
– Self-Leveling – Horizontal – Dual Axis Dial-in Grade |
| Product Type | General Construction | General Construction | Multi-Purpos Horiz / Vert | Semi-Automatic Grade | Semi-Automatic Grade |
| Laser Class | CLASS 2 | ||||
| Laser Type | 635 nm (visible beam) | ||||
| Plumb Up | – | – | Yes | – | – |
| Measured in 68° F Horizontal / Vertical |
+/- 3/32 inch at 100 feet | +/- 1/16 inch at 100 feet | |||
| Grade Range | – | – | – | +/- 8% SG | +/- 8% SG |
| Smart Slope | – | – | – | YES | YES |
| Rotation – RPS | 10 | 10 | 0, 2, 5, 10 | 10 | 10 |
| Scanning – degrees | – | – | 10, 45, 90 | – | – |
| Scan90 | – | – | YES | – | – |
| Beam Down | – | – | YES | – | – |
| Sleep Mode | – | – | YES | – | – |
| Range (diameter) Basic | 1,650 feet | 2,000 feet | 1,650 feet | 2,000 feet | 2,000 feet |
| Range (diameter) RE140/160 | 3,600 feet | ||||
| RF remote control (diameter) | – | – | 650 feet | – | – |
| Li-Ion battery (operation) | 40+ hours | 40+ hours | 40+ hours | 40+ hours | 40+ hours |
| Alkaline battery (operation) | 60+ hours | 60+ hours | 60+ hours | 60+ hours | 60+ hours |
| Working Temp Range | -4 to +122° F | -4 to +122° F | -4 to +122° F | -4 to +122° F | -4 to +122° F |
| Storage Temp | -40 to +152° F | -40 to +152° F | -40 to +152° F | -40 to +152° F | -40 to +152° F |
| Seal (both incuding and excluding battery pack) |
IP67 | IP67 | IP67 | IP67 | IP67 |
| Warranty | 3 years no cost (see PROTECT by Leica Geosystems policy for life time coverage | ||||
| Laser Receivers | |||||
| Technical Data | Rod Eye 120 Basic |
Rod Eye 140 Classic | Rod Eye 160 Digital | ||
| Model Number | 789922 | 789923 | 789924 | ||
| Working Diameter | 2,000 feet | 4,430 feet | 4,430 feet | ||
| Extended detection window | 1.4 inch | 5 inch | 5 inch | ||
| Numeric readout height | – | – | 3.5 inch | ||
| Detectible spectrum | 600 nm to 800 nm | 600 nm to 800 nm | 600 nm to 800 nm | ||
| Detectible Accuracies | Rod Eye Basic | Rod Eye 140 Classic | Rod Eye 160 Digital | ||
| Very fine | – | – | +/- 0.02 inch | ||
| Fine | +/- 0.04 inch | +/- 0.04 inch | +/- 0.04 inch | ||
| Medium | – | +/- 0.08 inch | +/- 0.08 inch | ||
| Course | +/- 0.12 inch | +/- 0.12 inch | +/- 0.12 inch | ||
| Very Course | – | – | +/- 0.20 inch | ||
