Availability: 9 in stock

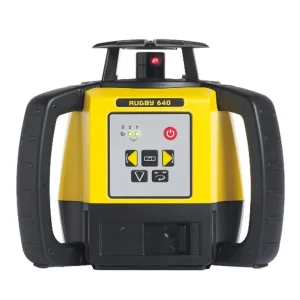

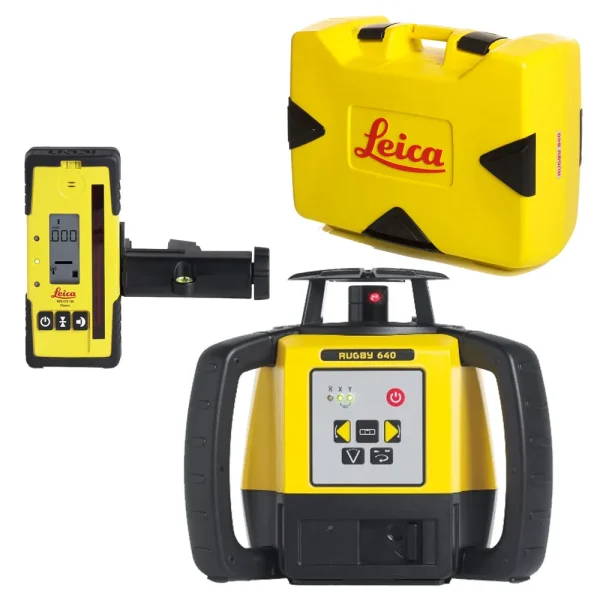

Overview for the Leica 6005987 Rugby 640 Red Beam Rotary Laser with Rod Eye 140 and Alkaline Battery

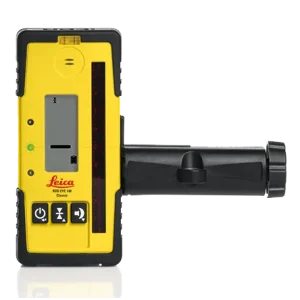

Offering high versatility in general construction and interior applications, the Leica Rugby 640 universal laser allows contractors to perform all horizontal, vertical and simple slope tasks quickly and reliably. For easy beam detection, use the simple Leica Rod Eye Basic laser receiver. For extended range and performance, this kit has been upgraded to a Leica Rod Eye 140 digital receiver.
The rotating laser is designed to perform in all horizontal, vertical and simple slope tasks quickly and reliably. It comes with an alkaline battery pack and classic receiver, offering an operating range of 3,600 feet. It features an IP67 protection class, making it splash-, water- and dustproof.
Rugby 640 multipurpose laser offers contractors a professional solution with an outstanding price-to-quality-ratio, allowing quick and easy levelling and aligning for general construction and interior applications. Contractors benefit from the extremely robust Li-Ion battery with versatile charging options. You can also take advantage of the extended functionality and application flexibility with Leica Rod Eye laser receivers and Leica RC 400 remote control. The strong service offering PROTECT by Leica Geosystems, includes the Lifetime Manufacturer’s Warranty and three year No Cost* period for the Rugby 640 rotating laser.
Leica Rugby 640 RED Beam Rotary Laser Package INCLUDES
Leica Rugby 640 Rotary Laser APPLICATIONS:
Leica Rugby 640 Rotary Laser SPECIFICATIONS:
| Technical Data | Rugby 610 | Rugby 620 | Rugby 640 | Rugby 670 | Rugby 680 |
| Weight | 5.2 lbs | 5.2 lbs | 5.6 lbs | 5.6 lbs | 5.6 lbs |
| Functionality | – Self-Leveling – Horizontal – One Button Laser |
– Self-Leveling – Horizontal – Single Axis Manual Slope |
– Self-Leveling – Horizontal and Vertical – Dual Axis Manual Slope – 90° Plumb Beam UP |
– Self-Leveling – Horizontal – Single Axis Dial-in Grade |
– Self-Leveling – Horizontal – Dual Axis Dial-in Grade |
| Product Type | General Construction | General Construction | Multi-Purpos Horiz / Vert | Semi-Automatic Grade | Semi-Automatic Grade |
| Laser Class | CLASS 2 | ||||
| Laser Type | 635 nm (visible beam) | ||||
| Plumb Up | – | – | Yes | – | – |
| Measured in 68° F Horizontal / Vertical |
+/- 3/32 inch at 100 feet | +/- 1/16 inch at 100 feet | |||
| Grade Range | – | – | – | +/- 8% SG | +/- 8% SG |
| Smart Slope | – | – | – | YES | YES |
| Rotation – RPS | 10 | 10 | 0, 2, 5, 10 | 10 | 10 |
| Scanning – degrees | – | – | 10, 45, 90 | – | – |
| Scan90 | – | – | YES | – | – |
| Beam Down | – | – | YES | – | – |
| Sleep Mode | – | – | YES | – | – |
| Range (diameter) Basic | 1,650 feet | 2,000 feet | 1,650 feet | 2,000 feet | 2,000 feet |
| Range (diameter) RE140/160 | 3,600 feet | ||||
| RF remote control (diameter) | – | – | 650 feet | – | – |
| Li-Ion battery (operation) | 40+ hours | 40+ hours | 40+ hours | 40+ hours | 40+ hours |
| Alkaline battery (operation) | 60+ hours | 60+ hours | 60+ hours | 60+ hours | 60+ hours |
| Working Temp Range | -4 to +122° F | -4 to +122° F | -4 to +122° F | -4 to +122° F | -4 to +122° F |
| Storage Temp | -40 to +152° F | -40 to +152° F | -40 to +152° F | -40 to +152° F | -40 to +152° F |
| Seal (both incuding and excluding battery pack) |
IP67 | IP67 | IP67 | IP67 | IP67 |
| Warranty | 3 years no cost (see PROTECT by Leica Geosystems policy for life time coverage | ||||
| Laser Receivers | |||||
| Technical Data | Rod Eye Basic | Rod Eye 140 Classic | Rod Eye 160 Digital | ||
| Model Number | 789922 | 789923 | 789924 | ||
| Working Diameter | 2,000 feet | 4,430 feet | 4,430 feet | ||
| Extended detection window | 1.4 inch | 5 inch | 5 inch | ||
| Numeric readout height | – | – | 3.5 inch | ||
| Detectible spectrum | 600 nm to 800 nm | 600 nm to 800 nm | 600 nm to 800 nm | ||
| Detectible Accuracies | Rod Eye Basic | Rod Eye 140 Classic | Rod Eye 160 Digital | ||
| Very fine | – | – | +/- 0.02 inch | ||
| Fine | +/- 0.04 inch | +/- 0.04 inch | +/- 0.04 inch | ||
| Medium | – | +/- 0.08 inch | +/- 0.08 inch | ||
| Course | +/- 0.12 inch | +/- 0.12 inch | +/- 0.12 inch | ||
| Very Course | – | – | +/- 0.20 inch | ||
