Availability: 8 in stock

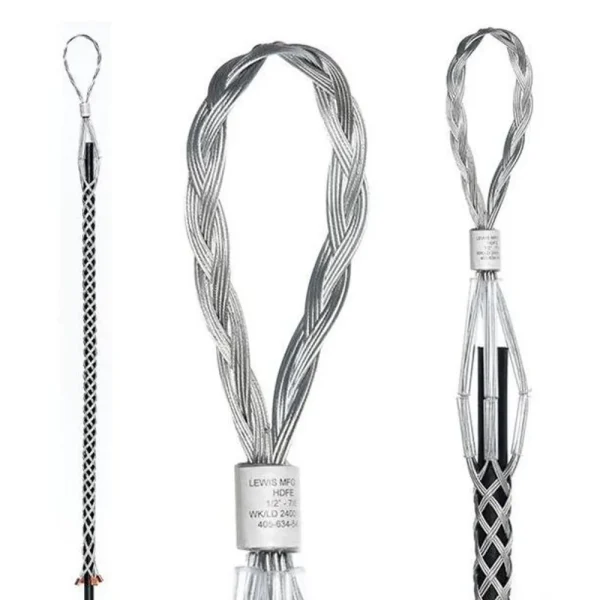

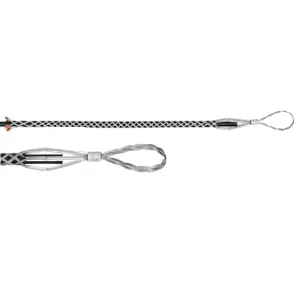

Lewis Flex Eye Overhead Pulling Grips – HDFE Series
Lewis Flex Eye Overhead Pulling Grips – HDFE Series provide a strong and flexible solution for pulling large conductors. Constructed from high-quality aircraft strand steel, these grips feature a unique braided flex-eye design that allows for smooth navigation through pulleys, tight angles, and small openings. The strands are securely retained at the head by a stainless steel spring, eliminating the need for a rigid compression sleeve. Built for heavy-duty applications, the HDFE Series ensures reliable performance for demanding overhead pulls.
| SKU (Part Number) | Size Range | WL lbs. | UTS lbs. | Mesh | Eye |
| LG HDFE1 | 1/4″ – 1/2″ | 1,200 | 3,600 | 22″ | 4″ |
|
LG HDFE2 |
1/2″ – 7/8″ | 2,400 | 7,200 | 42″ | 6″ |
|
LG HDFE3 |
7/8″ – 1-3/8″ |
5,700 | 17,100 | 48″ | 7″ |
|
LG HDFE4 |
1-3/8″ – 2″ | 9,600 | 28,800 | 50″ | 7″ |
|
LG HDFE5 |
2″ – 2-3/4″ | 11,500 | 34,500 | 52″ | 7″ |
|
LG HDFE6 |
2-3/4″ – 3-1/2″ | 13,500 | 40,500 | 54″ | 7″ |
