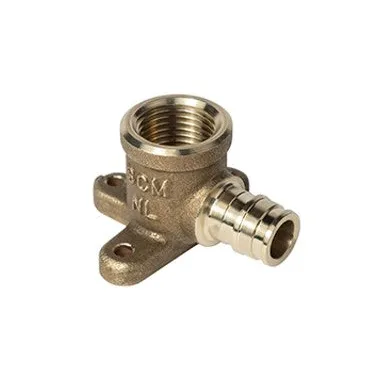

LF BRASS DROP EAR 90°

SPECIFICATION
Sioux Chief ASTM F1960 Grip™ brass PEX fitting system shall be used in
hot and cold water distribution systems. Fittings are approved for use with
ASTM F876 PEX tubing with cold-expansion rings. Please contact Sioux Chief
representative for specific product information within the Sioux Chief ASTM
F1960 product offering.
MATERIALS
No-Lead Brass*
INSTALLATION NOTES
Full installation instructions can be found at ASTM F1960
connections with PowerPEX® type B tubing must be made with a self-rotating,
power expansion tool. ASTM F1960 connections made in temperatures below
35 ºF with either Sioux Chief PowerPEX® type A or type B tubing should be
conditioned per Sioux Chief installation instructions to allow the tube and ring
to annularly constrict around the sealing barb of the fitting thereby achieving an
air-tight pressure seal. Pressure test all joints before use.
DIMENSIONS per ASTM F1960
½” ¾” 1″
A: Ftg Inside diameter 0.378″ min 0.595″ min 0.795″ min
B: Ftg Upper barb diameter 0.618″ min
0.610″ max
0.874″ min
0.866″ max
1.110″ min
1.102″ max
C: Ftg Lower barb diameter 0.579″ min
0.571″ max
0.795″ min
0.787″ max
1.032″ min
1.024″ max
D: Fitting end length 0.689″ min
0.729″ max
0.925″ min
0.965″ max
1.161″ min
1.201″ max
E: Ring inside diameter 0.633″
+/- 0.003
0.882″
+/- 0.004
1.134″
+/- 0.004
F: Ring wall thickness 0.123″
+/- 0.005
0.123″
+/- 0.005
0.143″
+/- 0.006
G: Ring overall height 0.630″
+/- 0.020
0.866″
+/- 0.020
1.102″
+/- 0.030
* Material is C69300 dezincification and SCC resistant, and is compliant with NSF-61 Annex G and California No Lead Plumbing Law

• One-piece brass fitting
