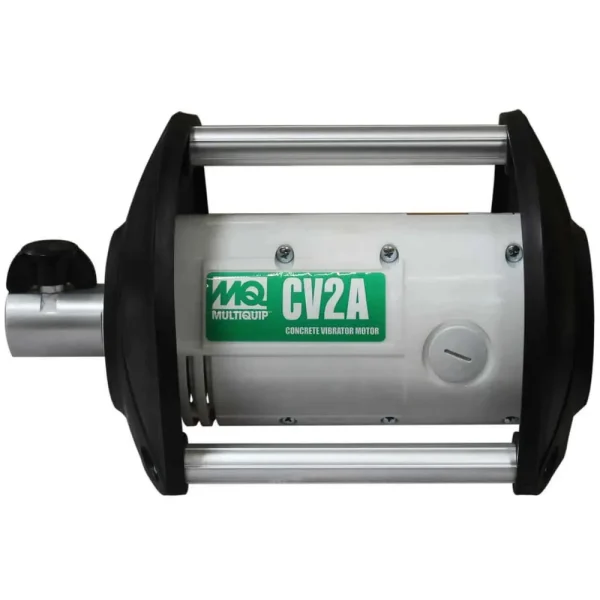

Multiquip CV2 2 hp Electric Concrete Vibrator Motor
This heavy-duty motor is designed for the rigors of the job site. Multiquip flex-shaft vibrators are designed for work in medium to high-slump concrete. Typical applications include small pours, slabs, driveways, stem walls, and footings.
Features
- Large vibration-isolated handles protect the motor and operator
- Strain relief prevents power cord pullouts
- Cassette style motor improves durability and performance by minimizing friction and enabling the motor to maintain optimum RPM
- Flow through ventilation reduces contamination by taking in air from the rear of the motor
- Flexible Shafts -Eight different shaft lengths are available, ranging in size from 3 to 21 ft
- Quick Connect Coupler – Makes setup on the job site fast and easy
- Ideal for steel vibrator heads available from 1-3/8″ to 2-1/8″ in diameter
- The industry’s strongest outer casing is constructed of flat steel wire covered by alternating layers of wire mesh, fabric, and rubber
- Super-tough Zenoy Resin housing concrete won’t adhere to it
- Handles are fixed in rubber motor ends, absorbing the shock if the motor is dropped
- UL and CSA-approved
- Anyway, you go; Multiquip gets the job done better and in less time
| Multiquip CV2A Motor Specifications |
| Power |
2 hp (1.492 kW) |
| Amps |
15 amps |
| No-Load RPM |
22,000 RPM |
| Shaft Compatibility |
FS – 3 ft. to 21 ft. |
| Head Compatibility |
1-3/8 in to 2-1/8 in |
| Weight |
12.5 lbs. |
