Availability: 10 in stock

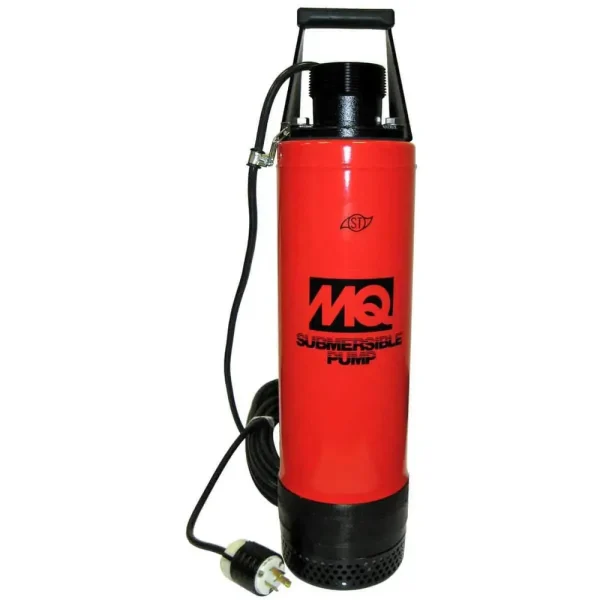

This 230-volt single-phase model has built-in thermal overload protection that shuts down the pump when operating temperature rises to unsafe levels. Ideally suited for 8″ (20 mm) casing pipe applications for dewatering coffers and excavations.
| Multiquip ST3020BCUL Water Pump Specifications | |
| Engine | Single Phase Electric – 230 V |
| Power | 2 hp (1.5kW) |
| Impeller Size | 3 in |
| Total Head | 72 ft |
| Water Capacity | 170 gpm |
| Max Solid Intake | 0 in |
| Starting Amperage | 52 amps |
| Running Amperage | 10.5 amps |
| Cable Length | 50 ft |
| Pump Diameter | 6.7 in |
| Overall Height | 28.5 in |
| Weight | 67 lbs |
