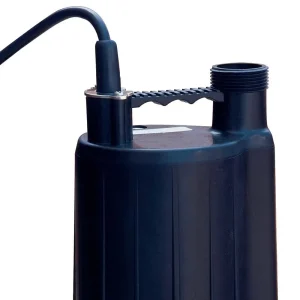

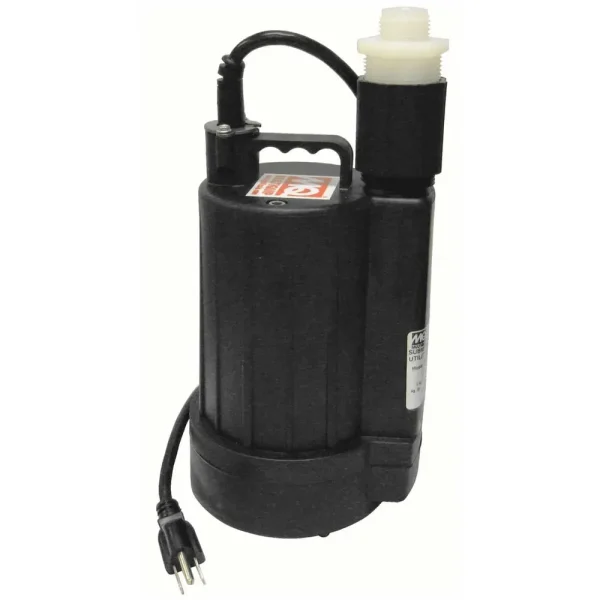

Multiquip Yellow Sub 110V Submersible Pump
Multiquip’s lightweight, compact submersible pumps are the first choice for household dewatering applications such as basements and swimming pools.
Features
- Built-in overload protection protects the motor from overheating
- Clean-up is easy with the removable screened bottom
- Maximum head of 20 feet (6.1 meters)
- Total weight of 6 pounds (2.8 kg)
- Top flow of 22 gallons (83 liters) a minute
- HP 0.25, (KW 0.185)
Sump pumps play an important role in the waterproofing process when an internal water management system is used.
- The sump pump is placed beneath the basement sub-floor at the lowest point of the drainage system so that all of the water captured in the perimeter drainage pipes flows toward the pump by means of gravity feed
- Once the water reaches the sump pump tank which houses the sump pump, it is then pumped outside through a discharge pipe that exits the basement above the sill of your home’s foundation
| Multiquip YELLSUB Water Pump Specifications |
| Engine |
Single Phase Electric – 115 V |
| Power |
0.25 HP | 0.185 kW |
| Impeller Disc Size |
1.25 in |
| Total Head |
15 ft |
| Water Capacity |
33 gpm |
| Max Solid Intake |
0 in |
| Starting Amperage |
11.5 amps |
| Running Amperage |
2.5 amps |
| Cable Length |
9 ft |
| Pump Diameter |
6.25 in |
| Overall Height |
9.5 in |
| Weight |
6 lbs |
|
