Availability: 8 in stock
Flow:0.3-0.7 gpm(61-159 lph)
Pressure:25-50 psi(1.8-3.4 bar)
Radius:18-27 ft(5.5-8.2 m)
Nozzle Size:#40-60 2TN, 0.35-0.5 10FC
Applications include: under-tree irrigation and environmental control of tree fruit, vine, and tree nut crops — as well as overhead irrigation, cooling, and environmental control in tree, vine, small fruit, and nursery crops.
The R10 is often used on permanent set using either PVC pipe or polyethylene pipe laterals, and portable pipes including aluminum, polyethylene and PVC.
Available with 3/8″ MNPT, 1/2″ MNPT, or 1/2″ female Acme threaded connection.

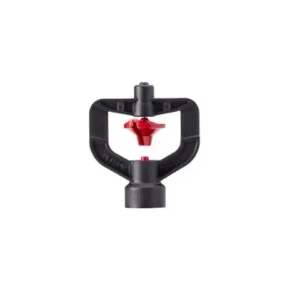

The Red plate provides the lowest trajectory, in the smallest flow rate available in the R10. It is a great choice for under tree irrigation systems in closely spaced orchards.
Flow:0.28-0.51 gpm(65-117 lph)
Pressure:25-50 psi(1.75-3.5 bar)
Radius:18-20 ft(5.5-6.1 m)
Nozzle Size:#40-#50, 0.35 10FC, 0.43 10FC

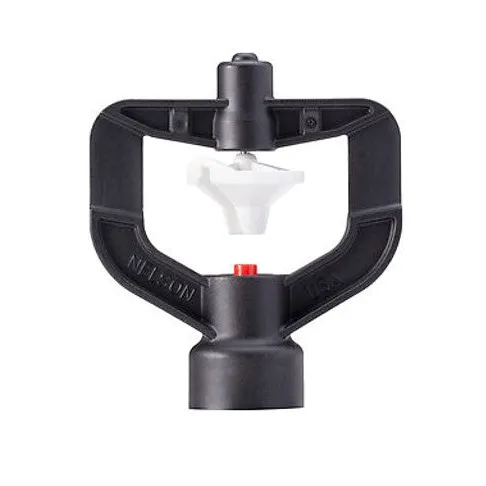

The P4, 9° White plate for the R10 is a low trajectory under-tree plate for use with the larger nozzles.
Flow:0.43-0.73 gpm(100-167 lph)
Pressure:25-50 psi(1.75-3.5 bar)
Radius:18-22 ft(5.5-6.7 m)
Nozzle Size:#50-#60, 0.5 10FC
The Orange P4 15° is ideal for higher pressures, higher radius and wider spacing. It is a great choice for orchards that will have cover crops, and really benefit from a 100% full coverage systems.
Flow:0.39-0.73 gpm(87-167 lph)
Pressure:30-50 psi(2-3.5 bar)
Radius:23-27 ft(7-8.2 m)
Nozzle Size:#50-#60, 0.5 10FC
