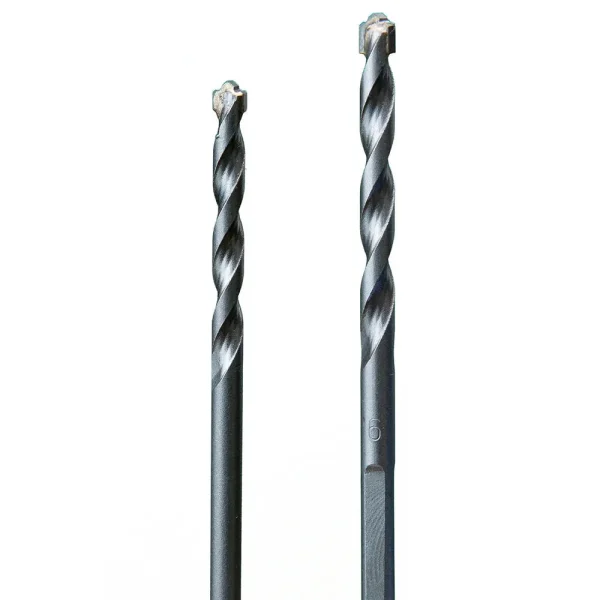

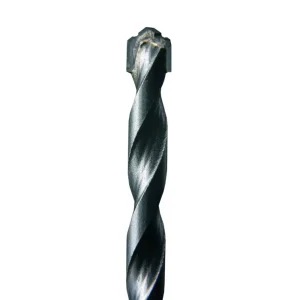

PorcelainPlus Cyclone Tungsten Carbide Multi-Purpose Drill Bits | 3/16″

Porcelain Cyclone Tungsten Carbide Tipped Multi-Purpose Masonry & Tile Bits

The Porcelain Cyclone was specifically designed for drilling quickly and efficiently through porcelain, masonry, and other hard surfaces for a variety of applications. Its speed and durability distinguish it from other standard carbide masonry bits. With a specially formulated mix of metals and a superior designed carbide tip, the Porcelain Cyclone makes installations quicker and easier and, therefore, more profitable.

Features

• Sold Individually
• Tungsten Carbide-Tipped, Multi-Purpose Masonry/Tile Drill Bit
• 3X Longer Life & 2X Faster than standard masonry/tile bits
• Drills 10+ holes per bit (based on PEI Class 5 porcelain tile with 1/4in Cyclone)
• Faster Drilling Times (average 30 sec/hole)
• Specifically designed for porcelain, masonry, and harder substrates
• Clean precise holes
• Quick & easy startup, no wandering
• Recommended drilling speed of 600 rpm (hammer drills and handheld drills only)

Recommended For

• Porcelain Tile
• Ceramic Tile
• Marble
• Granite
• Concrete Block
• Brick
• Quartz
• Crystallized Glass

Applications

• Frameless Shower Doors
• Masonry
• Bathroom Partitions
• Bathroom Accessories
• Tiles

Instructions (for maximum durability)

• 1: DIP IN WATER before drilling and about every 5 seconds during drilling (more often when going through harder materials). We find dipping in water is more effective at cooling the Porcelain bits than spraying.
• 2: FIRM PRESSURE: Let the bit do the work – Do not apply excessive pressure. Place the drill bit on the specified mark, apply pressure, listen for a slight CRUNCH, and start your drilling process. Drill straight into the hole and do not wiggle drill.
• 3: USE PROPER DRILLING SPEED: Cyclone: 600 rpm and slowed down while breaking through the hole.
• 4: The Cyclone can be used in a Handheld or Hammer Drill.
• 5: Do not use dull or damaged bit.
• 6: Wear ANSI-approved safety goggles and heavy-duty work gloves during use and when handling bit.
