Quick Drain USA WallDrain

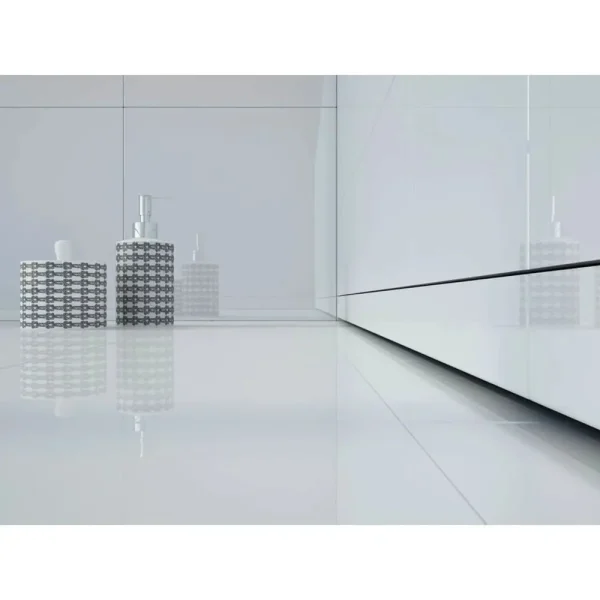

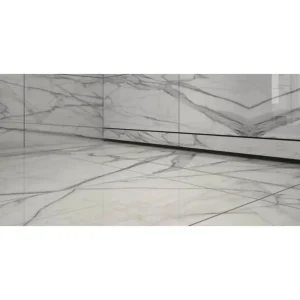

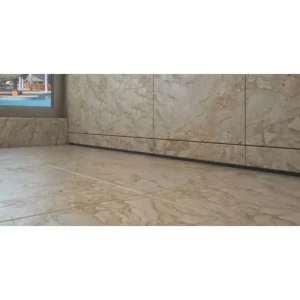

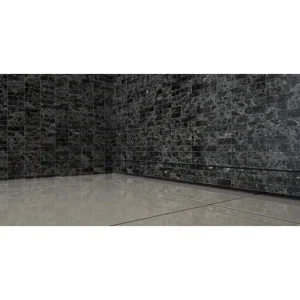

Quick Drain’s latest shower drain innovation is the WallDrain, a sloped linear drain system installed into the shower barrier with a subtle channel for a perfectly seamless design. These linear shower systems are transitional, offering an aesthetic flow with the design of its environment.
Features
- Patented Sure Flow System’s internally sloped drain configuration ensures no standing water, preventing build-up and bacteria growth
- Adjustable length drain body with the use of drain extensions (24″ for each side, 48″ total) to accommodate shower sizes from 26″ – 72″ with the use of one drain and 56″ – 96″ with two drains linked together
- Can be installed with most roll-on liquid waterproofing membranes or sub-floor drain systems (copper or PVC shower pans)
- It can be installed with any thickness of the tile and up to 3/4″ floor tile
- Available in 3 standard drain lengths with either a vertical waste outlet or a side waste outlet
- Vertical-to-vertical surface coverage
- Extensions and covers ensure a perfect install every time
- Extensions are trimmed at the job site after drain body installation
What’s Included?
- Vertical Installation Panel
- Adjustment Panel (Adjust Panel Base, Magnet Cover, and Tile Edging)
- Tile-in Cover
- Drain Extensions (2)
- Drain Body
- Furring Strips (8)
- Transition Tape
- Reinforcement Tape
- Inside Corners (2)
- Outside Corners (2)
- No-Hub Coupling
- Cover Removal Key
- Hardware (magnets, standoffs and screws)
- Installation Guide
