Raimondi Bolt Wet Tile Saw | 35-1/2″

Original price was: $1,750.00.Current price is: $115.67.

Availability: 6 in stock

🚚 Free Shipping over $39
✓ Premium Quality
🔒 Secure Payments
↻ Money Back Guarantee
SKU: 7338-35-1/2 in.
CATEGORY: Tile Saws & Cutters
Description

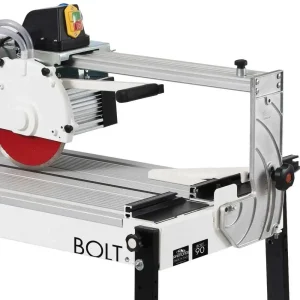

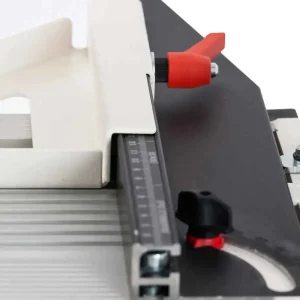

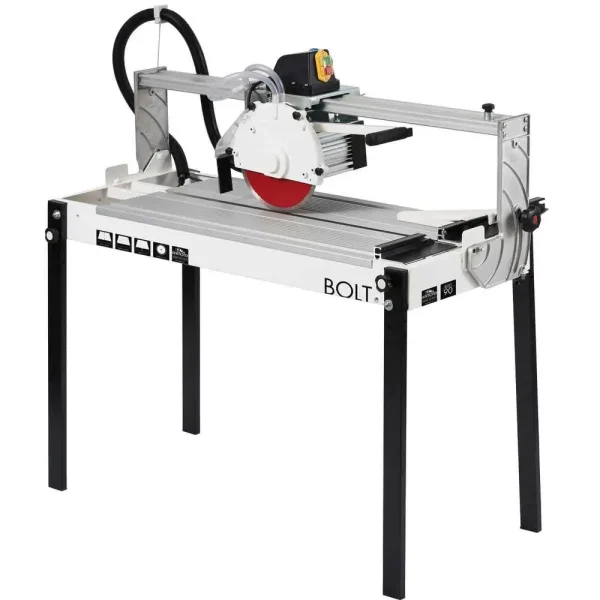

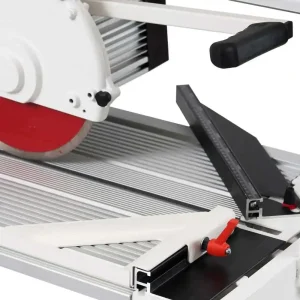

Raimondi Bolt Wet Tile Saw

Italian-made bridge saw for cutting granite, marble, porcelain, single and double-fired bricks, cement block, and more; straight, 45° bevel (Jolly), and plunge cuts.

Features

  • Rail pivots to a variety of angles for a perfect miter cut
  • Cast and extruded aluminum framework
  • Extruded aluminum cutting tables are more accurate than bent stainless steel tables.
  • Heavy duty water pump and (2) jet nozzles (front or rear mounted) provide superior blade cooling
  • Sliding motor assembly with cast aluminum housing provided with 4 re-adjustable pulleys (double bearings, only 2 are adjustable)

What’s Included?

  • Raimondi Bolt Rail Saw
  • Built-In Stand
  • 10 in Diamond Blade
  • 45°/90° Sliding Square
  • Water Pump
  • Wrench Kit
  • Operator’s manual
Raimondi Bolt Tile Saw Specifications
Raimondi Bolt90 Bolt120 Bolt150
Voltage 110V 110V 110V
Power 1.5 hp 1.5 hp 1.5 hp
Blade RPM 3600 RPM 3600 RPM 3600 RPM
Blade Capacity 10 in, 1 in arbor 10 in, 1 in arbor 10 in, 1 in arbor
Depth of Cut 2-1/8 in 2-1/8 in 2-1/8 in
Length of Cut 35-1/2 in 47-1/4 in 59 in
Diagonally Cuts 25 in x 25 in Tile 33-1/2 in x 33-1/2 in Tile 41-3/8 in x 41-3/8 in Tile
Shipping Truck on Pallet Truck on Pallet Truck on Pallet
Weight 101.3 lbs. 110.1 lbs. 119 lbs.
Dimensions 47-1/4 in x 22 in x 19-5/8 in 59 in x 22 in x 19-5/8 in 71 in x 22 in x 19-5/8 in
