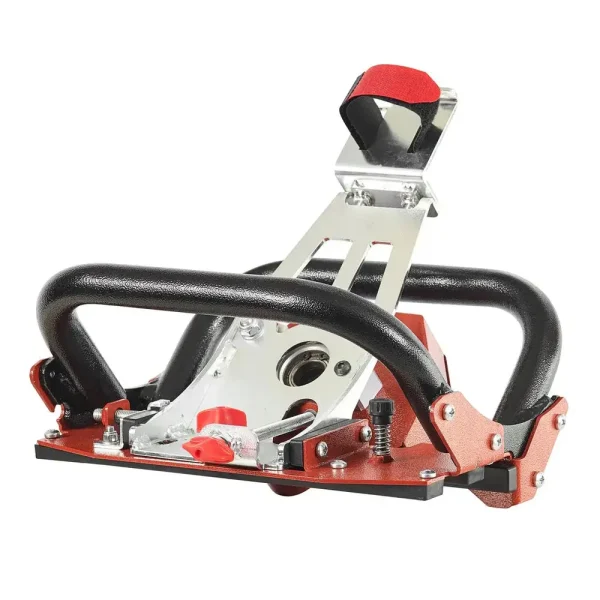

TCLF45DB Raimondi Box device to perform 45 without rail
Perform 45° miter cut high-quality finishing (“jolly”) directly on the construction site (actual miter angle: 47°).
Features
Anti-scratch plastic slides ensure optimal smoothness on the slab/tile.

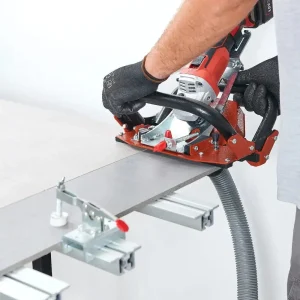

Rides on the edge of the tile (or slab): this guarantees a fast and precise work execution and allows work without any limit on length
Maximum slab/tile thickness: 16 mm (0.63″) with Ø115 mm (4 1/2″) blade; 20 mm (0.79″) with Ø125 mm (5″) blade

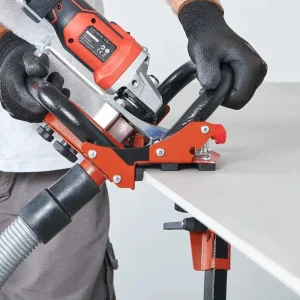

two handles are designed to easily allow the necessary pressure during the entire length of the miter cut (entrance, slab side, exit) to guarantee both optimal results and maximum ergonomics

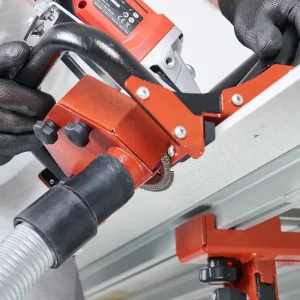

Cutting depth adjustment made by adjusting knobs, dial in the amount of material to be removed (farther or closer to tile glaze). Once the adjustment is set, it stays for any tiles/slab thicknesses
Blade tilt adjustment by dedicated screw, the blade can be tilted to prevent its rear from chip-ping the edge of tiles/slabs
Suitable with almost all angle grinders with power between 600-1100 W
Grinder with 5/8″-11 arbor attachment.
Maximum tile thickness of 5/8″ (16mm)
Use with a 4-1/2″ blade
Use dry (with a dust extractor) or wet (with kit for wet cut art.433PWW A).
