Raimondi Step 1 Diamond Milling Wheel for Bulldog Machine
The Raimondi milling wheels are used during the first step of the bullnose process to shape the tile or stone. Each wheel has a 20 mm arbor and comes in a segmented or continuous rim.

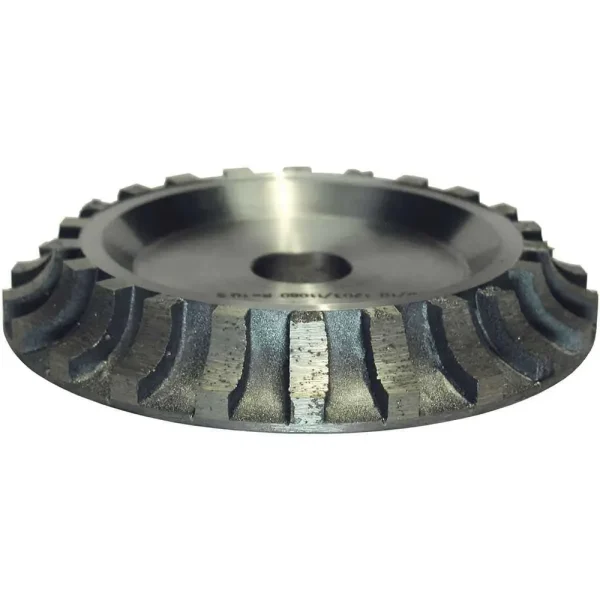

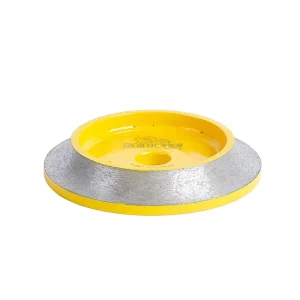

3/8″ Step 1 Milling Wheel – BDW38S1 and BDW38S1FC
- BDW38S1 is a segmented wheel
- BDW38S1FC is a continuous-rim wheel
- Used for most porcelain tile
- Radius: 3/8″
- Diameter: 4-3/4″
- Grit: 80
5/8″ Step 1 Milling Wheel – BDW58S1 and BDW58S1FC
- BDW58S1 is a segmented wheel
- BDW58S1FC is a continuous-rim wheel
- Used for natural stone or thicker porcelain
- Radius: 5/8″
- Diameter: 5″
- Grit: 80
