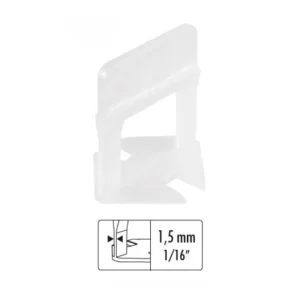

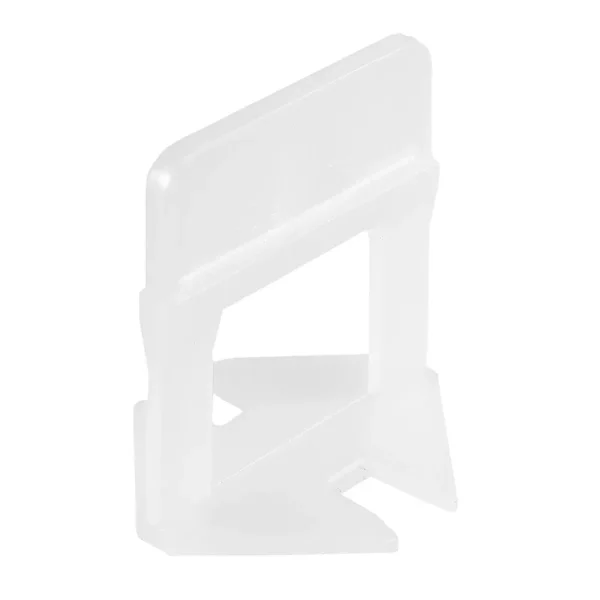

Raimondi Heavy Duty Tile Leveling System 1/16″ Clear HD Clips
The new RLS Raimondi Clips have been named HD, which stands for Heavy Duty. They are Raimondi’s best-performing and easiest-to-use clips, offering the highest tensile strength within Raimondi’s range of clips.
Features
- Raimondi Clips are available in 250, 500, and 2200 quantities
- It can be used when installing wall and floor tiles
- For use on porcelain, ceramic, and natural stone tiles
- HD Raimondi Clips will work with the same wedges, pliers, and tile protectors as all other Raimondi clips.
- The new HD base offers a much easier way to insert the clip underneath the tile.
- Creates a grout joint size of 1/16″
- The new HD base offers a much easier way to insert the clip underneath the tile.
- Use on 1/8″ to 1/2″ thick tile
- Wedges sold separately
Technical Data
- Use on 1/8″ to 1/2″ thick tile
- Minimum joint size: 1/16″ (1.5mm)
- 250, 500, or 2200 clips per bag
How to use
- STEP 1: After spreading your tile adhesive, insert a leveling spacer underneath the tiles along the 4 sides; use traditional spacers as you usually would to square up the corners. For larger tiles, it may be necessary to “double up,” using 2 leveling spacers for each side
- STEP 2: Set the tile and beat it with a rubber mallet
- STEP 3: Use the special traction-adjustable pliers to insert the wedge into the leveling spacers, paying attention not to pass the breakpoint
- STEP 4: Once the tile adhesive has been allowed to set. Remove the leveling spacers with the traction-adjustable plier’s rubber mallet, or kick them out with your feet
