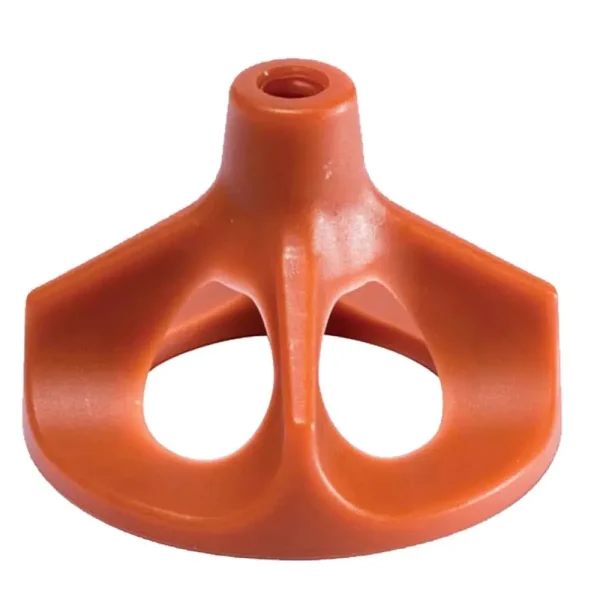

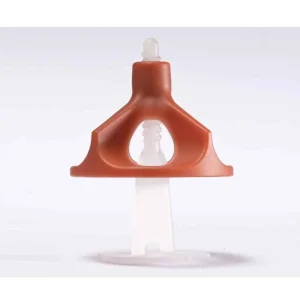

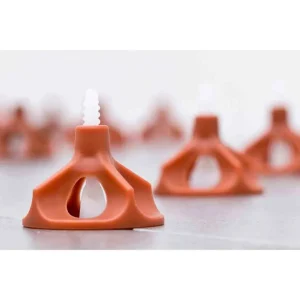

Caps are placed on top of the threads to be tightened
Caps spin and tighten with just two fingers
Grip points are established on caps spin until they reach the tile
Tighten caps so it levels itself between spaces, which removes lippage
Once the adhesive is set, simply remove caps by hitting with a rubber mallet or use the Clip Dozer
Caps are specially designed with hollow spaces to see grout joints
Suitable for both tile sides and intersections
The VITE does not require any tools
How to Use Raimondi Vite Tile Leveling System
STEP 1: After spreading your tile adhesive, insert a leveling clip underneath the tiles along the 4 sides – use traditional spacers as you usually would to square up the corners. For larger tiles, it may be necessary to “double up,” using 2 leveling spacers for each side
STEP 2: Set the tile and beat it with a rubber mallet

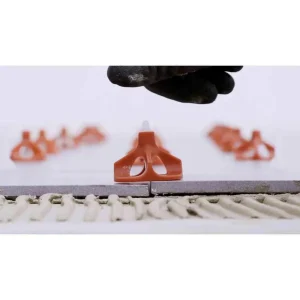

STEP 3: Spin the caps until tight. You will see the tile lift removing lippage
STEP 4: Once the tile adhesive has been set, remove the VITE system with a rubber mallet or kick it out with your feet. Grout can be installed once all clips have been removed
