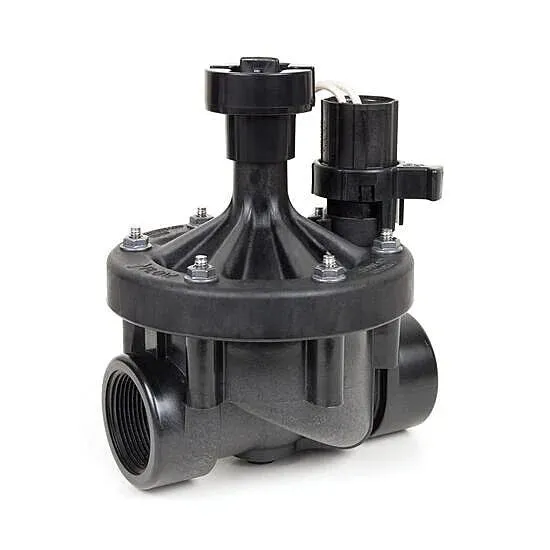

1 1/2 in. (40/49) plastic industrial irrigation valve
Durable glass-filled nylon construction with fabric-reinforced rubber diaphragm for long life and reliable performance
Globe configuration
Normally closed, forward flow design
Slow closing to prevent water hammer and subsequent system damage
Low flow capability for a wide range of applications
One-piece solenoid design with captured plunger and spring for easy servicing; prevents loss of parts during field service
Flow control handle adjusts water flows as needed
The PEB Series is our most durable plastic irrigation valve. This industrial-strength glass-filled nylon globe valve is ideal for commercial irrigation applications.
Additional Features:
Manual internal bleed manually operates the valve without allowing water into the valve box; allows pressure regulator to be adjusted without turning the valve on at the controller first.
Manual external bleed permits flushing debris from the system. Recommended for system start up and after repairs.
Stainless steel studs molded into the body. Bonnet can be attached and removed more easily and more often without damaging threads.
Technical Information
Operating Temperature: Up to 150° F (66° C)
Dimensions:
8″ x 6″ x 6″
(20,3 cm) x (15,2 cm) x (15,2 cm)
Electrical Specifications:
24 VAC 50/60 Hz (cycles per second) solenoid
Inrush current: 0.41A (9.9VA)
Holding current: 0.14A (3.43VA)
Coil resistance: 30-39 Ohms
Flow Range:
Flow without PRS-D option: 0.25 to 200 GPM (0,06 to 45 m3/h; 0,02 to 12,60 l/s)
Flow with PRS-D option: 5 to 200 GPM (1,14 to 45 m3/h; 0,32 to 12,60 l/s)
Operating Pressure: 20 to 200 psi (1,4 to 13,8 bar)
