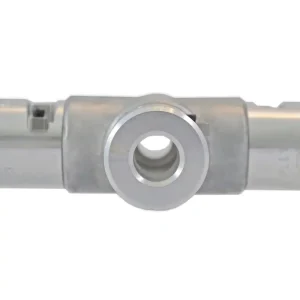

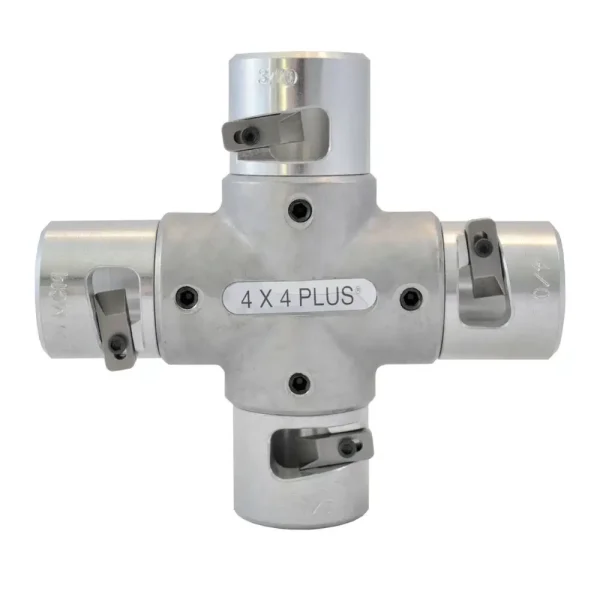

Ripley 4×4 Plus Series 600V Cable Stripper with 4 Cable Bushings (R-36000009)
Designed for efficiency and precision, the Ripley 4×4 Plus Series cable stripper safely removes insulation from 600V secondary cables without damaging the conductor, even in cold conditions.
Key Features:

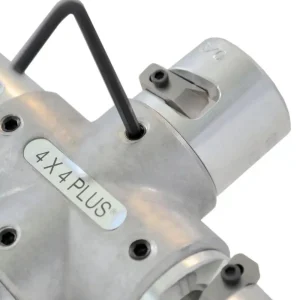

- Versatile Four-Sided Design: Accommodates four interchangeable bushings, easily swapped with a hex wrench.
- Precision Stripping: Strips 600V secondary cable without harming the conductor.
- Bushing Compatibility: Works with square or chamfer cut bushings for stripping 45 mil to 95 mil secondary insulations on concentric, compressed, or compacted conductors from #6 AWG to 750 kcmil.
- Enhanced Safety: Guarded bushing cutting blades minimize the risk of injury.

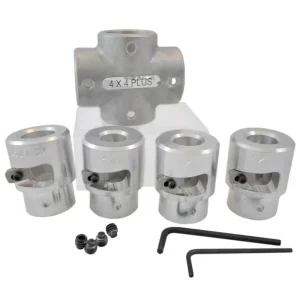

NOTE: The 4×4 Plus is available with or without bushings. Select square or chamfer cut bushings from the bushings below. Please specify four bushings when ordering the 4×4 Plus.
Compatibility
- Conductor Type: Concentric, Compressed, Compacted
- Cable Compatibility: Secondary Distribution
- Cable Access: End
- Min. Cable Outer Diameter: #6 AWG
- Max. Cable Outer Diameter: 750 kcmil
- Max. Voltage: 600 V
- Insulation Thickness: 45 mils, 60 mils, 80 mils, 95 mils
Specifications:
